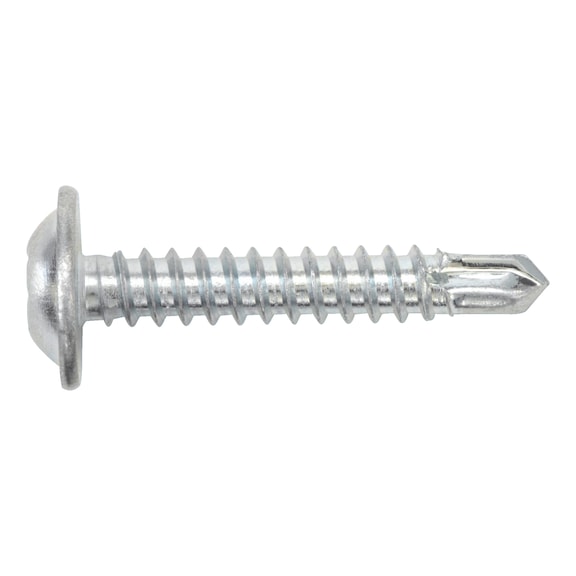

Pias® Drilling Screw | Round Head with Collar | AW Drive | Zinc Plated | @Pack of 50 | by Wurth
Pias® drilling screws are designed for efficient metal fastening, featuring a round head with collar and AW drive for enhanced torque transmission. Made from galvanized steel with a corrosion-resistant zinc plated surface, these screws are perfect for industrial applications, ensuring quick drilling, threading, and screwing in one step. Ideal for professionals seeking reliable performance in metal construction and assembly.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Steel
- Surface: Zinc plated (blue passivated A3K)
- Nominal diameter: 4.8 mm
- Length: 13 mm
- Head diameter: 12.75 mm
- Head height: 3.6 mm
- Drill tip length: 4.5 mm
- Head type: Pan head with collar
- Internal drive: AW25
- Thread type: Self-tapping full thread
- Min. recommended substructure thickness: 1.7 mm
- Max. material thickness to be drilled through (metal): 4.0 mm
- Max. attachment thickness: 4 mm
- Recommended installation speed: 1200-1800 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.6mm x 13mm x 12.75mm
- Weight: 0.02 kg
Key Features
- Galvanised steel with blue passivated (A3K) surface for corrosion resistance
- AW drive system for enhanced torque transmission and longer service life
- Drilling, threading, and screwing-in all in one step to reduce time and effort
- Exact drilling diameter minimizes thread tolerance and prevents installation errors
- Pressed-on flange reduces surface pressure to prevent stress cracks
- Even force distribution protects surface-protection coating
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure correct torque and fastening for optimal performance and safety.
Applications
- Metal construction and assembly
- Sheet metal fastening
- Industrial and manufacturing applications
- General purpose drilling and fastening in metal materials
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable corrosion-resistant coating extends product life, reducing waste
Warranty Information
Wurth offers standard warranty against manufacturing defects; please refer to Wurth's warranty policy for details.
Available Now
Wurth pias® drilling screws are available for immediate purchase, ideal for metal fastening and industrial applications.
