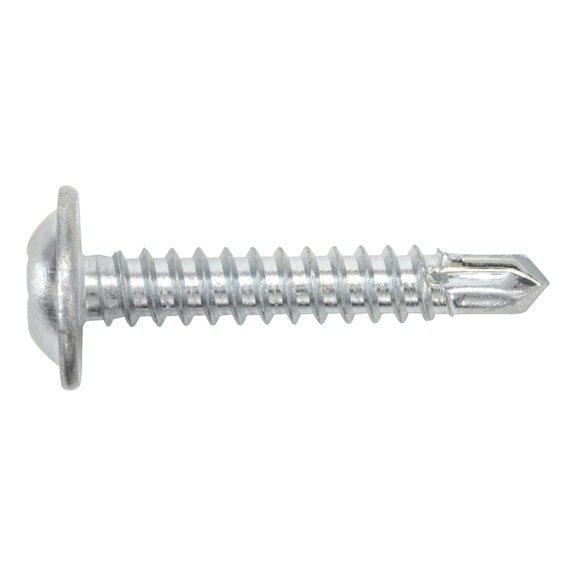

Pias® Drilling Screw | Round Head with Collar | AW Drive | Zinc Plated | @Pack of 50 | by Wurth
Pias® drilling screws are designed for efficient metal fastening with a round head and collar, featuring an AW drive for enhanced torque transmission. Ideal for industrial and manufacturing applications, these screws simplify drilling, threading, and screwing-in in one step, ensuring precise installation and reducing time and effort.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias® Drilling Screw | Round Head with Collar | AW Drive | Zinc Plated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 21814850
Alternatively Known As: Self-drilling screw, Pan head screw with collar, AW drive screw, Metal drilling screw, Zinc plated screw

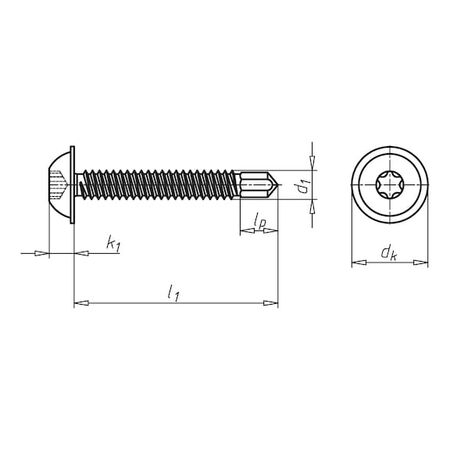

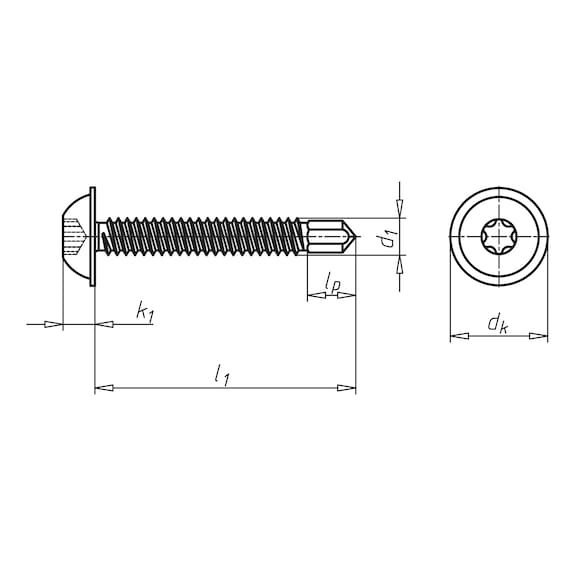

Technical Specifications
- Material: Steel
- Surface: Zinc plated (blue passivated A3K)
- Nominal diameter: 4.8 mm
- Length: 50 mm
- Head diameter: 12.75 mm
- Head height: 3.6 mm
- Drill tip length: 4.5 mm
- Head type: Pan head with collar

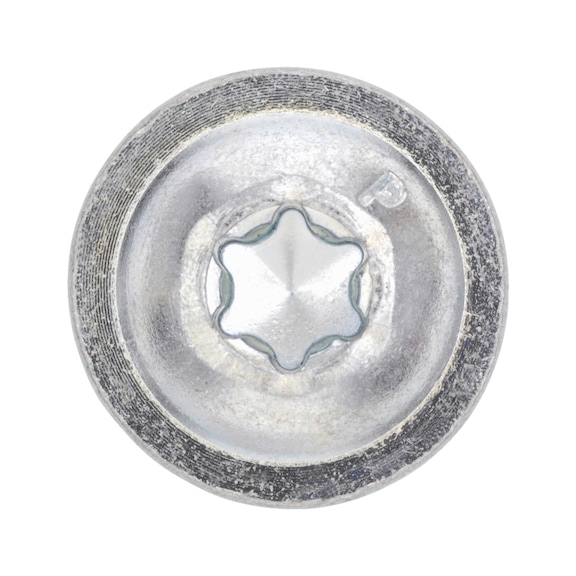

- Internal drive: AW25
- Thread type: Self-tapping full thread
- Min. recommended substructure thickness: 1.7 mm
- Max. material thickness to be drilled (metal): 4.0 mm
- Max. attachment thickness: 41 mm
- Recommended installation speed (idling): 1200-1800 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.6mm x 50mm x 12.75mm
- Weight: 0.05 kg
Key Features
- Galvanised steel with blue passivated (A3K) surface for corrosion resistance
- AW drive system for enhanced torque transmission and longer service life
- Drilling, threading, and screwing-in all in one step to reduce time and effort
- Exact drilling diameter minimizes thread tolerance and prevents installation errors
- Pressed-on flange reduces surface pressure to prevent stress cracks
- Even force distribution protects surface coating and improves corrosion resistance
Professional Installation Requirements
- Professional installation recommended to ensure correct torque and fastening performance using appropriate tools and speeds.
Applications
- Metal construction and assembly
- Sheet metal fastening
- Industrial and manufacturing applications
- General purpose drilling and screwing tasks
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable corrosion-resistant coating extends product life, reducing waste
Warranty Information
Wurth offers standard product warranty against manufacturing defects. Please refer to Wurth's warranty policy for details.
Available Now
Wurth pias® drilling screws are available for immediate purchase, ideal for metal fastening and industrial applications.
