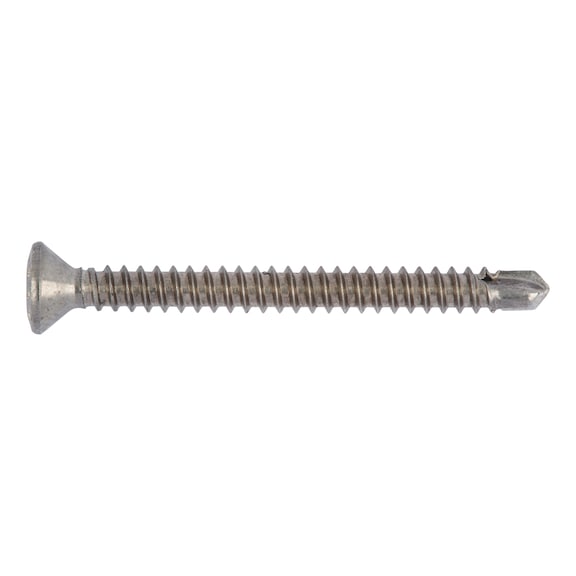

Pias® Drilling Screw | Stainless Steel A2 | AW Drive | 100 PCS | by Wurth
Pias® drilling screws are crafted from stainless steel A2, ensuring corrosion resistance and durability. With a raised countersunk head and AW drive, these screws provide optimum torque transmission, making them ideal for metal construction and assembly. Designed for self-tapping applications, they simplify the installation process by combining drilling, threading, and screwing in one step, perfect for professionals seeking efficiency and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias® Drilling Screw | Stainless Steel A2 | AW Drive | 100 PCS | by Wurth
Brand: Wurth
SKU: 20514245
Alternatively Known As: Self-tapping drilling screw, Stainless steel drilling screw, Raised countersunk head screw, AW drive screw
Technical Specifications
- Material: Stainless steel A2
- Surface: Plain
- Nominal diameter: 4.2 mm
- Length: 45 mm
- Head diameter: 8.1 mm
- Head height: 3.1 mm
- Drill tip length: 3.7 mm
- Head type: Raised countersunk head
- Internal drive: AW20
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Shape of tip: Drilling tip
- Minimum recommended substructure thickness: 1.5 mm
- Maximum material thickness to be drilled through (metal): 3.5 mm
- Recommended installation speed (idling): 1700-2500 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.1mm x 45mm x 8.1mm
- Weight: 0.1 kg
Key Features
- Made of stainless steel A2 for corrosion resistance
- Raised countersunk head in flat design with AW drive for optimum torque transmission
- Drilling, threading, and screwing-in all in one work step to reduce time and effort
- Exact drilling diameter minimizes thread tolerance and prevents installation errors
- AW drive system enhances torque transmission and extends service life
- Optimum centring and better mounting output with fatigue-free screwing
- Even force distribution prevents damage to surface-protection coating
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate tools to ensure correct torque and avoid damage.
Applications
- Metal construction and assembly
- Sheet metal fastening
- General industrial and construction fastening requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from stainless steel A2 which is recyclable and durable, reducing replacement frequency
- RoHS-compliant, ensuring no hazardous substances are used
Warranty Information
Wurth offers standard warranty against manufacturing defects; please refer to Wurth's warranty policy for details.
Available Now
Wurth pias® drilling screws are available for immediate purchase, ideal for metal fastening and construction applications.
