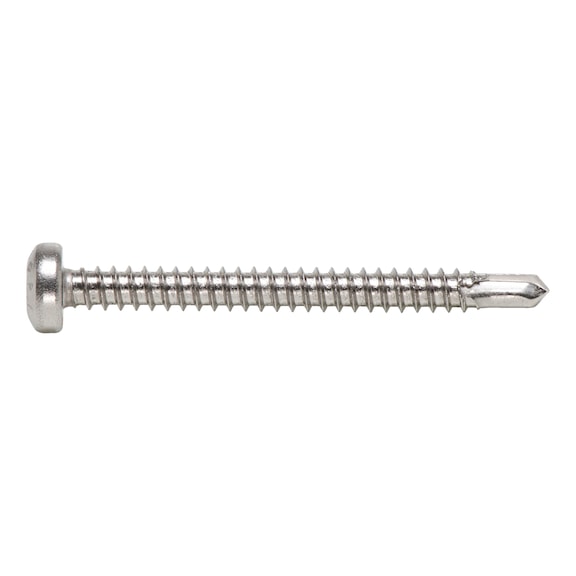

Pias® Drilling Screw | Stainless Steel A2 | AW Drive | 50 PCS | by Wurth
Pias® drilling screws with AW drive are crafted from durable A2 stainless steel, ensuring corrosion resistance and optimal fastening. Ideal for fastening aluminum profiles to substructures up to 3 mm thick, these self-tapping screws feature a drilling tip that eliminates the need for center-punching, significantly reducing assembly time. Perfect for professionals seeking efficiency and reliability in their installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias® Drilling Screw | Stainless Steel A2 | AW Drive | 50 PCS | by Wurth
Brand: Wurth
SKU: 20613916
Alternatively Known As: Self-tapping drilling screw, Stainless steel drilling screw, AW drive screw, Flat head drilling screw, Aluminium fastening screw
Technical Specifications
- Material: Stainless steel A2
- Surface: Plain
- RoHS-compliant: Yes
- Head type: Pan head
- Drive type: AW (AW20 internal drive)
- Thread type: Self-tapping screw thread
- Shape of tip: Drilling tip
- Nominal diameter: 3.9 mm
- Length: 16 mm
- Head diameter: 7.5 mm
- Head height: 3.1 mm
- Drill tip length: 3.8 mm
- Screw-thread length with drill tip: 13.5 mm
- Minimum recommended substructure thickness: 1.5 mm
- Maximum material thickness to be drilled through (metal): 3.0 mm
- Minimum/maximum attachment thickness: 1.5-9.5 mm
- Recommended installation speed (idling): 1700-2500 rpm
- Dimensions (H x L x W): 3.1mm x 16mm x 7.5mm
- Weight: 0.02 kg
Key Features
- Made of A2 stainless steel for corrosion resistance
- Drilling tip allows drilling without centre-punching
- Thread forming for fastening all in one operation
- Assembly time reduced by at least 50% using the drill tip
- Optimal torque transmission with AW drive
- Suitable for substructure thickness from 1.5 mm to 9.5 mm
- Recommended installation speed between 1700-2500 rpm
Professional Installation Requirements
- Use a suitable drill driver such as a cordless drill driver with depth stop. Impact screwdrivers are not permitted. Screws must be attached perpendicular to the surface for optimal fastening.
Applications
- Fastening aluminium profiles to aluminium substructures up to 3 mm thick
- Suitable for component combinations tI/tII according to approval ETA-10/0184
- Ideal for aluminium/aluminium fastening with diameters 4.2 mm and 4.8 mm
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from stainless steel A2 which is recyclable and durable, reducing waste
- RoHS-compliant ensuring no hazardous substances are used
Warranty Information
Wurth provides standard warranty against manufacturing defects; please refer to Wurth's warranty policy for details.
Available Now
Wurth pias® drilling screws flat head with AW drive 50 PCS are available for immediate purchase, ideal for aluminium profile fastening applications.
