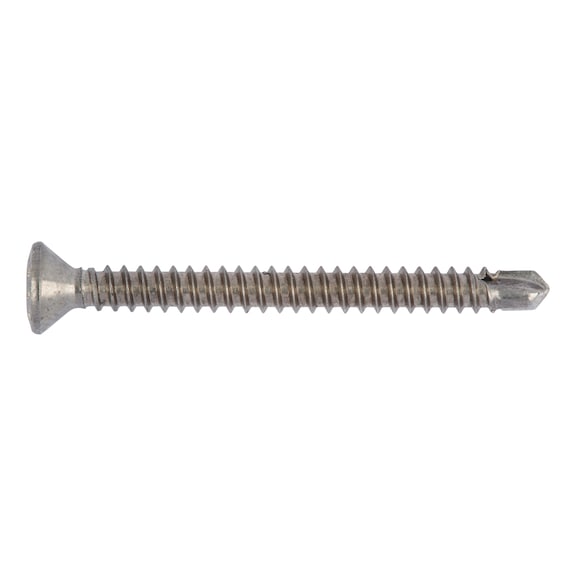

Pias® Drilling Screw | Stainless Steel A2 | AW Drive | Raised Countersunk Head | @Pack of 100 | by Wurth
Pias® drilling screws are crafted from stainless steel A2, ensuring exceptional corrosion resistance. With a raised countersunk head and AW10 drive, these self-tapping screws simplify installation by combining drilling, threading, and screwing in one step. Ideal for metal construction and assembly, they provide a secure connection in materials up to 2.5 mm thick, making them perfect for industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias® Drilling Screw | Stainless Steel A2 | AW Drive | Raised Countersunk Head | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 20513516
Alternatively Known As: Self-tapping drilling screw, Stainless steel metal screw, AW drive screw, Raised countersunk head screw
Technical Specifications
- Material: Stainless steel A2
- Surface: Plain
- Nominal diameter: 3.5 mm
- Length: 16 mm
- Head diameter: 6.8 mm
- Head height: 2.5 mm
- Drill tip length: 3 mm
- Head type: Raised countersunk head
- Internal drive: AW10
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Shape of tip: Drilling tip
- Minimum recommended substructure thickness: 1.5 mm
- Maximum material thickness to be drilled through (metal): 2.5 mm
- Recommended installation speed (idling): 1700-2500 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.5mm x 16mm x 6.8mm
- Weight: 0.05 kg
Key Features
- Made of stainless steel A2 for corrosion resistance
- Raised countersunk head in flat design with AW10 internal drive
- Drilling, threading, and screwing-in all in one work step for reduced time and effort
- Exact drilling diameter minimizes thread tolerance and ensures optimum connection
- AW drive system provides enhanced torque transmission and longer service life
- Optimum centring and better mounting output with fatigue-free screwing
- Even force distribution prevents damage to surface-protection coating
- Suitable for metal thickness up to 2.5 mm
- RoHS-compliant
Professional Installation Requirements
- Installation should be performed by professionals familiar with metal fastening and using appropriate tools to ensure correct torque and avoid damage.
Applications
- Metal construction and assembly
- Sheet metal fastening
- General industrial and construction fastening requiring corrosion resistance
- Installation in thin metal sheets up to 2.5 mm thickness
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from stainless steel A2 which is recyclable
- RoHS-compliant ensuring no hazardous substances
- Durable corrosion-resistant material extends product life reducing waste
Warranty Information
Wurth provides a standard warranty against manufacturing defects. Please refer to Wurth's official warranty policy for details.
Available Now
Wurth pias® drilling screws with raised countersunk head and AW drive are available for immediate purchase. Ideal for metal fastening applications requiring corrosion resistance and efficient installation.
