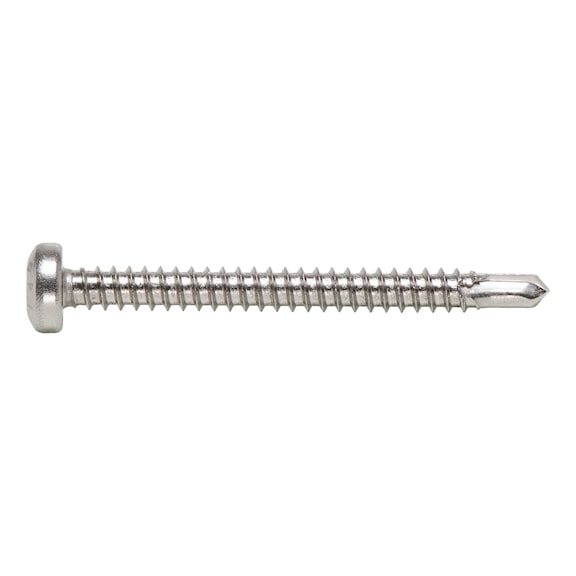

Pias® Drilling Screw | Stainless Steel A2 | AW Drive | Self-Tapping | @Pack of 50 | by Wurth
Pias® drilling screws are designed for fastening aluminum profiles to aluminum substructures, featuring a stainless steel A2 construction for corrosion resistance. With a unique drilling tip that eliminates the need for center-punching, these self-tapping screws ensure secure fastening in one operation, reducing assembly time by at least 50%. Ideal for professional installations, they comply with ETA-10/0184 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias® Drilling Screw | Stainless Steel A2 | AW Drive | Self-Tapping | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 20614216
Alternatively Known As: Self-tapping drilling screw, stainless steel drilling screw, AW drive screw, aluminium profile screw
Technical Specifications
- Material: Stainless steel A2
- Surface: Plain
- RoHS-compliant: Yes
- Head type: Pan head
- Drive type: AW
- Thread type: Self-tapping screw thread
- Shape of tip: Drilling tip
- Underground: Aluminum
- Nominal diameter: 4.2 mm
- Length: 16 mm
- Head diameter: 8 mm
- Head height: 3.45 mm
- Drill tip length: 4.4 mm
- Screw-thread length with drill tip: 13.5 mm
- Internal drive: AW20
- Min. recommended substructure thickness: 1.5 mm
- Max. material thickness to be drilled through (metal): 3.0 mm
- Min./max. attachment thickness: 2-9 mm
- Approval: ETA-10/0184
- Min./max. recommended installation speed (idling): 1700-2500 rpm
- Dimensions (H x L x W): 3.45mm x 16mm x 8mm
- Weight: 0.05 kg
Key Features
- Made of stainless steel A2 for corrosion resistance
- Drilling tip allows drilling without centre-punching
- Thread forming for secure fastening in one operation
- Assembly time reduced by at least 50% using the drill tip
- Optimal torque transmission with AW drive
- Suitable for fastening aluminium profiles to aluminium substructures
- Approved according to ETA-10/0184
Professional Installation Requirements
- Use a suitable drill driver with depth stop; impact screwdrivers are not permitted. Screws must be attached perpendicular to the surface for optimal fastening.
Applications
- Fastening aluminium profiles to aluminium substructures up to 3 mm thick
- Suitable for component combinations tI/tII according to ETA-10/0184 approval
- Ideal for aluminium/aluminium fastening with diameters 4.2 mm and 4.8 mm
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from stainless steel which is recyclable and durable, reducing waste
- Efficient fastening reduces assembly time and energy consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth pias® drilling screws flat head with AW drive 50 PCS are available for immediate purchase, ideal for aluminium profile fastening applications.
