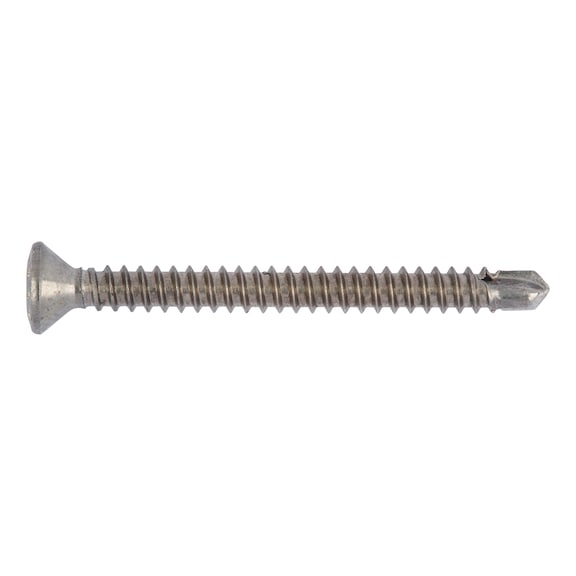

Pias® Drilling Screw | Stainless Steel A2 | Raised Countersunk Head | AW Drive | @Pack of 100 | by Wurth
Pias® drilling screws are crafted from stainless steel A2, featuring a raised countersunk head and AW drive for optimal torque transmission. Ideal for metal construction and assembly, these self-tapping screws streamline drilling, threading, and screwing-in in one step, ensuring a secure connection and reducing installation errors. Perfect for professionals seeking reliable, corrosion-resistant fastening solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias® Drilling Screw | Stainless Steel A2 | Raised Countersunk Head | AW Drive | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 20513916
Alternatively Known As: Self-tapping drilling screw, Stainless steel countersunk screw, AW drive screw, Metal drilling screw
Technical Specifications
- Material: Stainless steel A2
- Surface: Plain
- Nominal diameter: 3.9 mm
- Length: 16 mm
- Head diameter: 7.5 mm
- Head height: 2.8 mm
- Drill tip length: 3.1 mm
- Head type: Raised countersunk head
- Internal drive: AW20
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Shape of tip: Drilling tip
- Min. recommended substructure thickness: 1.5 mm
- Max. material thickness to be drilled through (metal): 3.0 mm
- Min./max. recommended installation speed (idling): 1700-2500 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.8mm x 16mm x 7.5mm
- Weight: 0.05 kg
Key Features
- Made of stainless steel A2 for corrosion resistance
- Raised countersunk head in flat design with AW drive for optimum torque transmission
- Drilling, threading, and screwing-in all in one work step to reduce time and effort
- Exact drilling diameter for each screw connection minimizes thread tolerance
- Prevents installation errors with optimum connection
- AW drive system enhances torque transmission and extends service life
- Fatigue-free screwing with lower contact pressure for torque transmission
- Largest possible contact surface of bit in screw drive for even force distribution
- Prevents damage to surface-protection coating ensuring better corrosion resistance
Professional Installation Requirements
- Installation should be performed by professionals using appropriate tools at recommended speeds to ensure optimal performance and safety.
Applications
- Metal construction and assembly
- Sheet metal fastening
- General industrial and construction fastening requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from stainless steel A2 which is recyclable and durable, reducing replacement frequency
- RoHS-compliant ensuring no hazardous substances are used
Warranty Information
Wurth provides warranty against manufacturing defects as per company standards.
Available Now
Wurth pias® drilling screws with raised countersunk head and AW drive are available for immediate purchase, ideal for metal fastening and construction applications.
