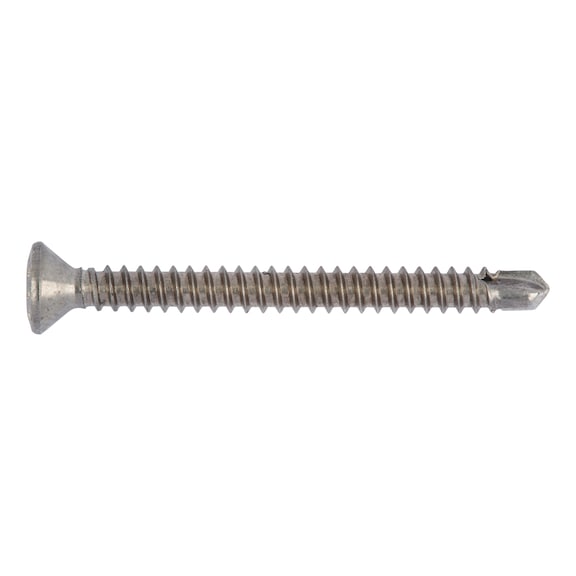

Pias® Drilling Screw | Stainless Steel A2 | Raised Countersunk Head | AW Drive | @Pack of 100 | by Wurth
Pias® drilling screws are crafted from stainless steel A2, ensuring corrosion resistance and durability. With a raised countersunk head and AW drive, these screws provide optimum torque transmission, making them ideal for metal construction and assembly. Designed for professional use, they simplify drilling, threading, and screwing-in in one step, reducing installation time and effort.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias® Drilling Screw | Stainless Steel A2 | Raised Countersunk Head | AW Drive | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 20513919
Alternatively Known As: Self-tapping drilling screw, Stainless steel drilling screw, Raised countersunk head screw, AW drive screw
Technical Specifications
- Material: Stainless steel A2
- Surface: Plain
- Nominal diameter: 3.9 mm
- Length: 19 mm
- Head diameter: 7.5 mm
- Head height: 2.8 mm
- Drill tip length: 3.1 mm
- Head type: Raised countersunk head
- Internal drive: AW20
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Shape of tip: Drilling tip
- Min. recommended substructure thickness: 1.5 mm
- Max. material thickness to be drilled through (metal): 3.0 mm
- Recommended installation speed (idling): 1700-2500 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.8mm x 19mm x 7.5mm
- Weight: 0.02 kg
Key Features
- Made of stainless steel A2 for corrosion resistance
- Raised countersunk head in flat design with AW drive for optimum torque transmission
- Drilling, threading, and screwing-in all in one work step to reduce time and effort
- Exact drilling diameter minimizes thread tolerance and prevents installation errors
- AW drive system enhances torque transmission and service life
- Optimum centring and better mounting output with fatigue-free screwing
- Even force distribution prevents damage to surface-protection coating
Professional Installation Requirements
- Installation should be performed by professionals familiar with self-tapping screws and appropriate power tools to ensure correct torque and avoid damage.
Applications
- Metal construction and assembly
- Sheet metal fastening
- General industrial and construction fastening requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from stainless steel A2 which is recyclable and durable, reducing waste
- RoHS-compliant ensuring no hazardous substances are used
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
The Wurth pias® drilling screw with raised countersunk head and AW drive 100 PCS is available for immediate purchase, ideal for metal fastening and construction applications.
