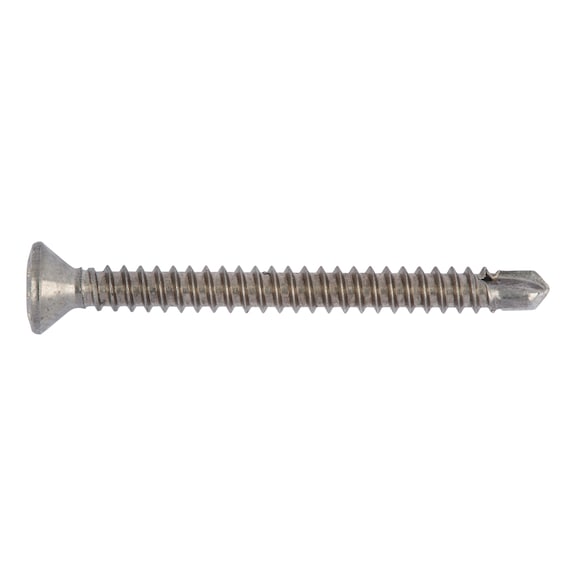

Pias® Drilling Screw Stainless Steel A2 Raised Countersunk Head Variant-6 Wurth
Pias® drilling screws with raised countersunk heads and AW drive are perfect for metal construction and assembly.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Stainless steel A2
- Surface: Plain
- Nominal diameter: 3.9 mm
- Length: 25 mm
- Head diameter: 7.5 mm
- Head height: 2.8 mm
- Drill tip length: 3.1 mm
- Head type: Raised countersunk head
- Internal drive: AW20
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Shape of tip: Drilling tip
- Minimum recommended substructure thickness: 1.5 mm
- Maximum material thickness to be drilled through (metal): 3.0 mm
- Recommended installation speed (idling): 1700-2500 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.8mm x 25mm x 7.5mm
- Weight: 0.05 kg
Key Features
- Made from stainless steel A2 for corrosion resistance
- Raised countersunk head in flat design with AW drive for optimum torque transmission
- Drilling, threading, and screwing-in all in one work step to reduce time and effort
- Exact drilling diameter for each screw connection minimizing thread tolerance
- Prevents installation errors with optimum connection
- Enhanced torque transmission and longer service life due to AW drive system
- Optimum centring and better mounting output with fatigue-free screwing
- Even force distribution prevents damage to surface-protection coating
- RoHS-compliant
Professional Installation Requirements
- Professional installation recommended to ensure correct torque application and optimal fastening performance.
Applications
- Metal construction and assembly
- Sheet metal fastening
- General industrial and construction fastening requiring corrosion resistance
- Applications requiring efficient drilling, threading, and screwing in one step
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from stainless steel which is recyclable and durable, reducing waste
- RoHS-compliant ensuring no hazardous substances are used
Warranty Information
Wurth provides a standard warranty against manufacturing defects; please refer to Wurth's official warranty policy for details.
Available Now
Wurth pias® drilling screws with raised countersunk head and AW drive are available for immediate purchase, ideal for metal fastening and construction applications.
