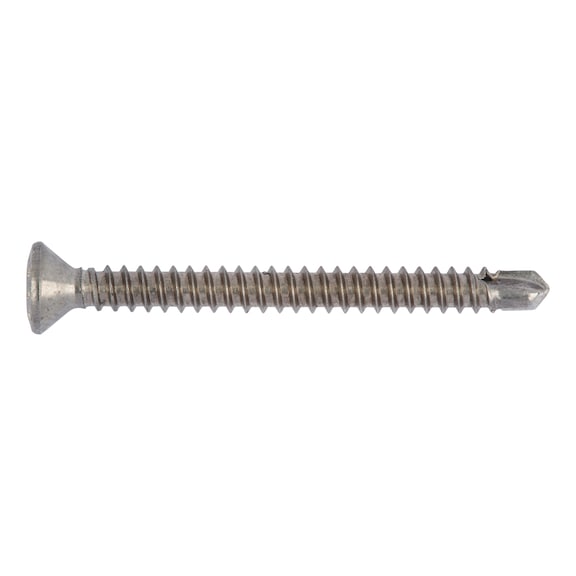

Pias® Drilling Screw | Stainless Steel A2 | Raised Countersunk Head | AW Drive | @Pack of 100 | by Wurth
Pias® drilling screws are crafted from stainless steel A2, featuring a raised countersunk head and AW drive for optimal torque transmission. Perfect for metal construction and assembly, these screws streamline the drilling, threading, and fastening process in one step, ensuring a secure connection with minimal installation errors. Ideal for professionals seeking reliable performance in industrial manufacturing and sheet metal fastening.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias® Drilling Screw | Stainless Steel A2 | Raised Countersunk Head | AW Drive | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 20514250
Alternatively Known As: Self-drilling screw, Stainless steel drilling screw, Raised countersunk head screw, AW drive screw, Metal drilling screw
Technical Specifications
- Material: Stainless steel A2
- Surface: Plain
- Nominal diameter: 4.2 mm
- Length: 50 mm
- Head diameter: 8.1 mm
- Head height: 3.1 mm
- Drill tip length: 3.7 mm
- Head type: Raised countersunk head
- Internal drive: AW20
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Shape of tip: Drilling tip
- Minimum recommended substructure thickness: 1.5 mm
- Maximum material thickness to be drilled through (metal): 3.5 mm
- Recommended installation speed (idling): 1700-2500 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.1mm x 50mm x 8.1mm
- Weight: 0.05 kg
Key Features
- Made of stainless steel A2 for corrosion resistance
- Raised countersunk head in flat design with AW drive for optimum torque transmission
- Drilling, threading, and screwing-in all in one work step to reduce time and effort
- Exact drilling diameter for each screw connection minimizing thread tolerance
- Prevents installation errors with optimum connection
- AW drive system enhances torque transmission and extends service life
- Fatigue-free screwing with lower contact pressure for torque transmission
- Largest possible contact surface of bit in screw drive for even force distribution
- Surface-protection coating prevents damage and improves corrosion resistance
Professional Installation Requirements
- Installation by trained personnel or professionals recommended to ensure correct torque and fastening technique.
Applications
- Metal construction and assembly
- Sheet metal fastening
- Industrial manufacturing
- General purpose drilling and fastening in metal substrates
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from stainless steel A2 which is recyclable and durable, reducing waste
- RoHS-compliant ensuring no hazardous substances are used
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Wurth pias® drilling screws with raised countersunk head and AW drive are available for immediate purchase, ideal for metal fastening and construction applications.
