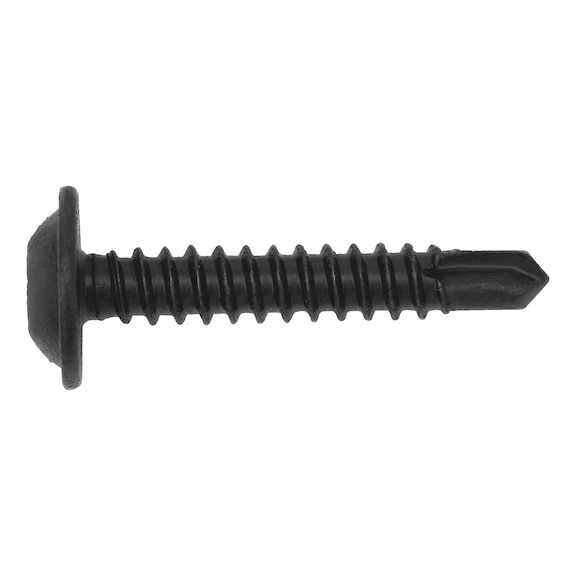

Pias® Drilling Screw | Steel with Black Zinc-Flake Coating | AW Drive | 50 PCS | by Wurth
Pias® drilling screws are designed for metal fastening with a robust steel construction and black zinc-flake coating for enhanced corrosion resistance. Featuring an AW drive system, these self-tapping screws simplify installation by drilling, threading, and screwing in one step, making them ideal for industrial applications and sheet metal fastening.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias® Drilling Screw | Steel with Black Zinc-Flake Coating | AW Drive | 50 PCS | by Wurth
Brand: Wurth
SKU: 21874835
Alternatively Known As: Self-tapping drilling screw, Pan head drilling screw, AW drive screw, Zinc-flake coated screw, Metal drilling screw

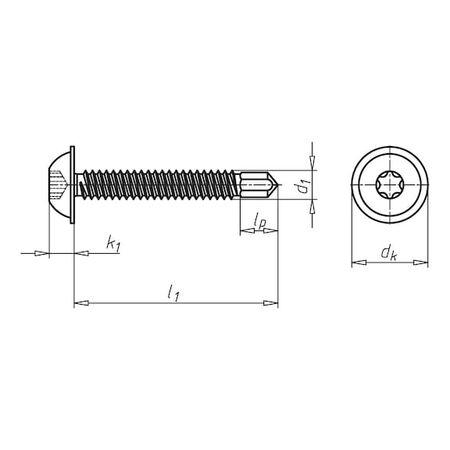

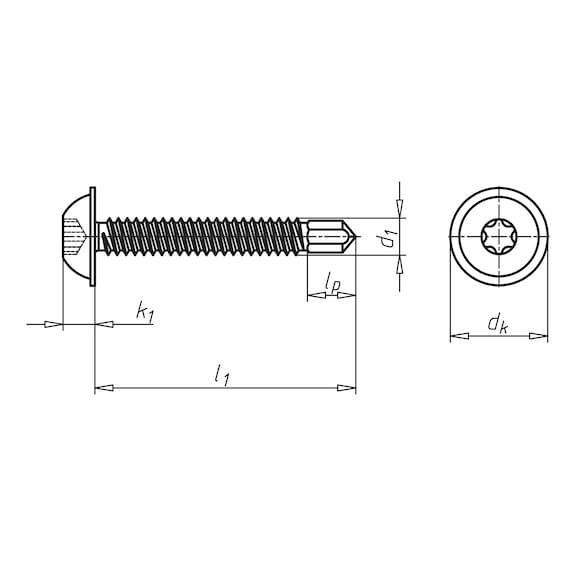

Technical Specifications
- Material: Steel
- Surface: Black zinc-flake coating (ZFBM)
- Nominal diameter: 4.8 mm
- Length: 35 mm
- Head diameter: 12.75 mm
- Head height: 3.6 mm
- Drill tip length: 4.5 mm
- Head type: Pan head with collar
- Internal drive: AW25
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Minimum recommended substructure thickness: 1.7 mm
- Maximum material thickness to be drilled through (metal): 4.0 mm
- Maximum attachment thickness: 26 mm
- Recommended installation speed (idling): 1200-1800 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.6mm x 35mm x 12.75mm
- Weight: 0.05 kg
Key Features
- Steel construction with black zinc-flake coating (ZFBM) for corrosion resistance
- AW drive system for enhanced torque transmission and longer service life
- Drilling, threading, and screwing-in all in one step to reduce time and effort
- Exact drilling diameter minimizes thread tolerance and prevents installation errors
- Pressed-on flange reduces surface pressure to prevent stress cracks
- Full thread self-tapping screw thread design
- Fatigue-free screwing with optimum centring and better mounting output
- Even force distribution protects surface coating and improves corrosion resistance
Professional Installation Requirements
- Installation should be performed by professionals using suitable drills and tools to ensure correct torque and avoid damage to the screw or materials.
Applications
- Metal construction and assembly
- Sheet metal fastening
- Industrial and manufacturing applications requiring self-tapping screws
- General fastening where corrosion resistance and strong torque transmission are needed
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable coating extends product life, reducing waste
- Efficient installation reduces energy and resource use
Warranty Information
Wurth offers a standard warranty against manufacturing defects; please refer to Wurth's official warranty policy for details.
Available Now
Wurth pias® drilling screws are available for immediate purchase, ideal for metal fastening and industrial applications requiring durable and efficient self-tapping screws.
