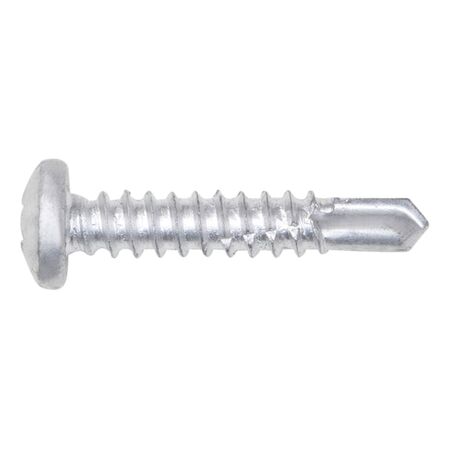

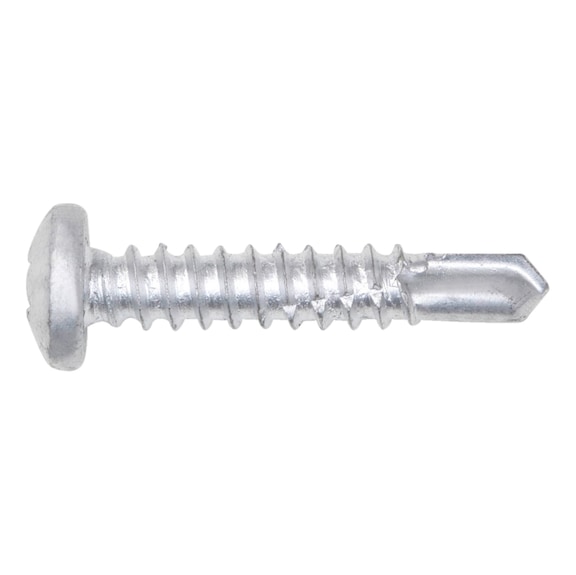

Piasta® Drilling Screw | A2 Stainless Steel | Cone Slot H Drive | 50 PCS | by Wurth
Piasta® drilling screws are designed for efficient fastening in aluminum and steel substructures, featuring a durable A2 stainless steel construction and a cone slot H drive for secure fastening. With a unique drill tip that reduces assembly time by 50%, these self-tapping screws are perfect for aesthetic fittings in visible areas, ensuring a reliable hold without the need for additional sealing washers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Piasta® Drilling Screw | A2 Stainless Steel | Cone Slot H Drive | 50 PCS | by Wurth
Brand: Wurth
SKU: 21183516
Alternatively Known As: Self-tapping drilling screw, Pan head drilling screw, Stainless steel drilling screw, Recessed head screw
Technical Specifications
- Material: Bimetal (A2 stainless steel with hardened steel drill tip)
- Surface: Flake zinc
- Head type: Pan head
- Drive type: Cone slot H (H2 internal drive)
- Thread type: Self-tapping screw thread
- Shape of tip: Drilling tip
- Nominal diameter: 3.5 mm
- Length: 16 mm
- Head diameter: 7.5 mm
- Head height: 2.7 mm
- Drill tip length: 3.5 mm
- Screw-thread length with drill tip: 15 mm
- Min. recommended substructure thickness: 0.75 mm
- Max. material thickness to be drilled through (metal): 2.5 mm
- Max. substructure thickness: 1.5 mm
- Attachment thickness range: 1-6 mm
- Recommended installation speed: 1700-2500 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.7mm x 16mm x 7.5mm
- Weight: 0.05 kg
Key Features
- Made of A2 stainless steel with hardened steel drill tip
- Cone slot H drive type for secure fastening
- Drill tip reduces assembly time by at least 50%, enabling drilling without centre punching
- Thread moulding and securing all in one operation
- Self-tapping screw thread with pan head
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper fastening and safety compliance.
Applications
- Fastening in aluminum and steel substructures
- Aesthetic fittings in visible areas without additional sealing washer
- Suitable for non-approved areas requiring durable fastening
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from stainless steel for durability and corrosion resistance, reducing replacement frequency
- RoHS-compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth piasta® drilling screws are available for immediate purchase, ideal for construction and industrial fastening applications.
