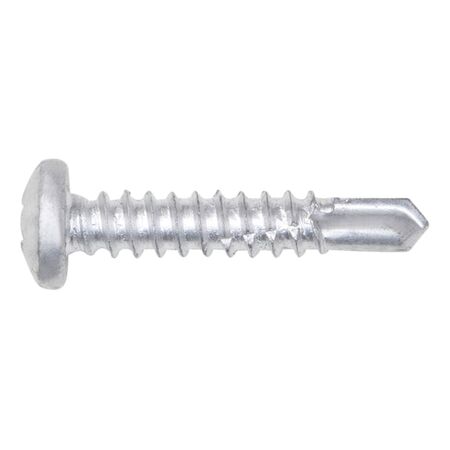

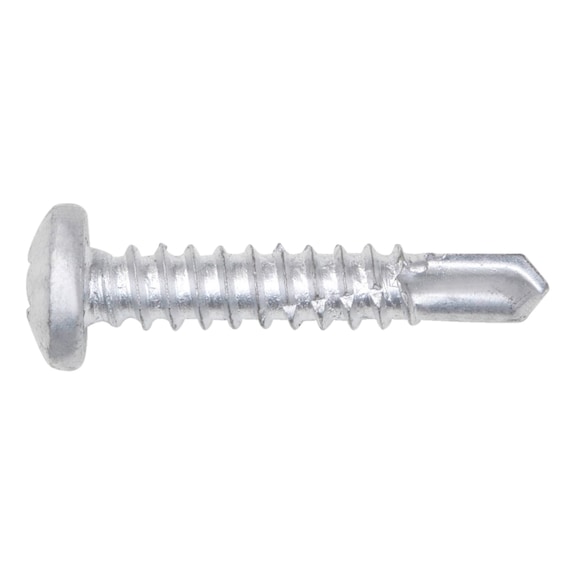

piasta® Drilling Screw | A2 Stainless Steel | Cone Slot H Drive | 50 PCS | by Wurth
The piasta® drilling screw features a durable A2 stainless steel construction with a hardened steel drill tip, making it ideal for fastening in aluminum and steel substructures. With its cone slot H drive type, this self-tapping screw ensures secure fastening while reducing assembly time by at least 50%. Perfect for construction and assembly applications, it offers a reliable solution without the need for center punching.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: piasta® Drilling Screw | A2 Stainless Steel | Cone Slot H Drive | 50 PCS | by Wurth
Brand: Wurth
SKU: 21184238
Alternatively Known As: Self-tapping drilling screw, pan head screw, recessed head screw, stainless steel drilling screw
Technical Specifications
- Material: Bimetal (A2 stainless steel with hardened steel drill tip)
- Surface: Flake zinc
- Head type: Pan head
- Drive type: Cone slot H (H2 internal drive)
- Thread type: Self-tapping screw thread
- Shape of tip: Drilling tip
- Nominal diameter: 4.2 mm
- Length: 38 mm
- Head diameter: 8.2 mm
- Head height: 3 mm
- Drill tip length: 4.5 mm
- Screw-thread length with drill tip: 36.5 mm
- Min. recommended substructure thickness: 1 mm
- Max. material thickness to be drilled through (metal): 3 mm
- Max. substructure thickness: 2 mm
- Min./max. attachment thickness: 1.5-26 mm
- Recommended installation speed (idling): 1700-2500 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3mm x 38mm x 8.2mm
- Weight: 0.05 kg
Key Features
- Made of A2 stainless steel with hardened steel drill tip
- Cone slot H drive type for secure fastening
- Drill tip reduces assembly time by at least 50%
- Drilling without centre punching, thread moulding, and securing in one operation
- Self-tapping screw thread with pan head
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper fastening and compliance with structural requirements.
Applications
- Fastening in aluminum and steel substructures
- Aesthetic fittings in visible areas without additional sealing washer
- Suitable for non-approved areas in construction and assembly
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from stainless steel for durability and corrosion resistance, reducing replacement frequency
- RoHS-compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth piasta® drilling screws are available for immediate purchase, ideal for construction, manufacturing, and assembly applications requiring durable and efficient fastening solutions.
