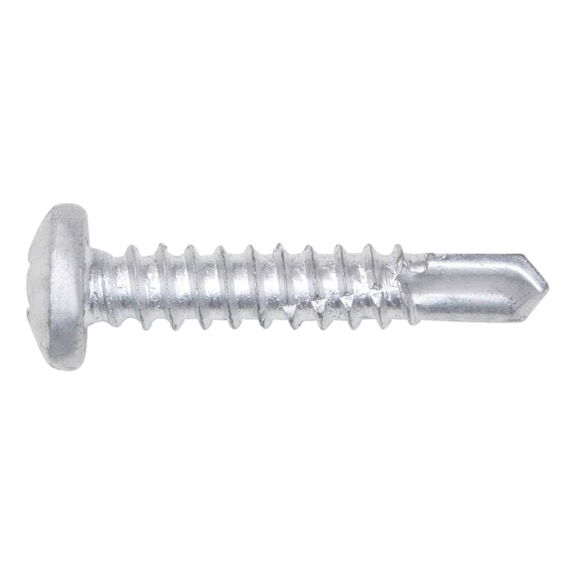

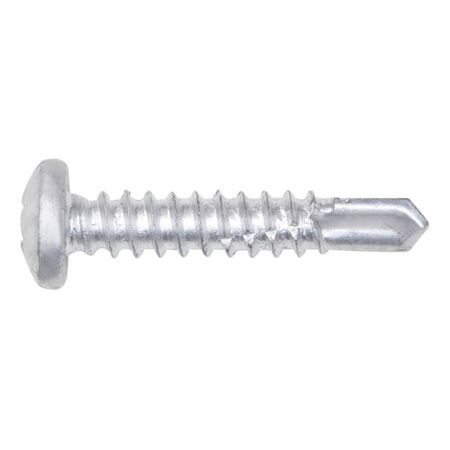

piasta® Drilling Screw | A2 Stainless Steel | Pan Head & Self-Tapping | @Pack of 25 | by Wurth
The piasta® drilling screw is designed for efficient fastening in aluminum and steel substructures, featuring a hardened A2 stainless steel construction and a pan head for secure installation. With a self-tapping thread and a drill tip that reduces assembly time by 50%, these screws are perfect for construction and assembly applications, ensuring durability and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: piasta® Drilling Screw | A2 Stainless Steel | Pan Head & Self-Tapping | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 21184819
Alternatively Known As: Self-tapping drilling screw, Stainless steel drill screw, Pan head drilling screw, Recessed head screw
Technical Specifications
- Material: Bimetal
- Surface: Flake zinc
- RoHS-compliant: Yes
- Head type: Pan head
- Drive type: H (Cone slot)
- Thread type: Self-tapping screw thread
- Shape of tip: Drilling tip
- Suitable for steel and aluminum substructures
- Nominal diameter: 4.8 mm
- Length: 19 mm
- Head diameter: 9.5 mm
- Head height: 3.5 mm
- Drill tip length: 5 mm
- Screw-thread length with drill tip: 17 mm
- Internal drive: H2
- Min. recommended substructure thickness: 1.5 mm
- Max. material thickness to be drilled through (metal): 4.4 mm
- Max. substructure thickness: 3 mm
- Attachment thickness range: 1.5-7.25 mm
- Recommended installation speed (idling): 1700-2500 rpm
- Dimensions (H x L x W): 3.5mm x 19mm x 9.5mm
- Weight: 0.05 kg
Key Features
- Made of A2 stainless steel with hardened steel drill tip
- Shaped thread for secure fastening
- Cone slot H drive type for efficient installation
- Drill tip reduces assembly time by at least 50%
- Drilling without centre punching, thread moulding, and securing in one operation
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper fastening and safety.
Applications
- Fastening in aluminum and steel substructures
- Aesthetic fittings in visible areas without additional sealing washer
- Suitable for non-approved areas in construction and assembly
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable stainless steel construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth piasta® drilling screws are available for immediate purchase, ideal for construction and assembly applications requiring durable and efficient fastening.
