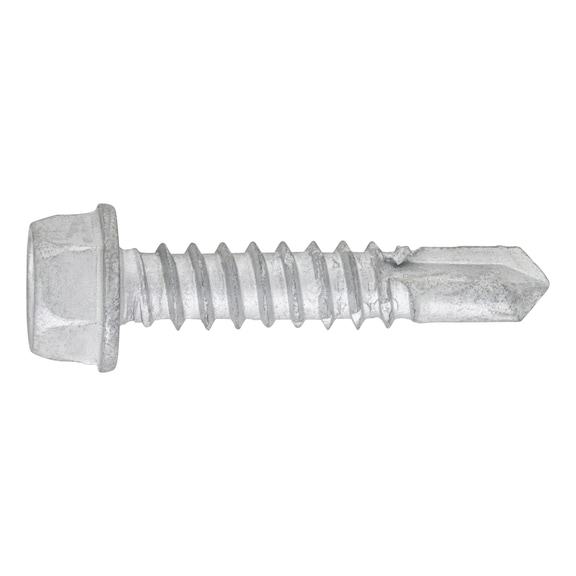

Piasta® Drilling Screw | Hexagon Head A2 Stainless Steel | Drill Tip & Moulded Thread | @Pack of 25 | by Wurth
Piasta® drilling screws are designed for efficient metal fastening, featuring a hexagon head and a drill tip for easy installation without pre-punching. Ideal for attaching metal profiles to steel or aluminum substructures, these screws reduce assembly time by at least 50% and ensure secure fastening with their self-tapping thread. Perfect for professionals seeking reliable performance in metal construction and assembly applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Piasta® Drilling Screw | Hexagon Head A2 Stainless Steel | Drill Tip & Moulded Thread | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 214814838
Alternatively Known As: Self-drilling screw, Hex head drilling screw, Metal drilling screw, Bimetal screw, Hexagon head screw

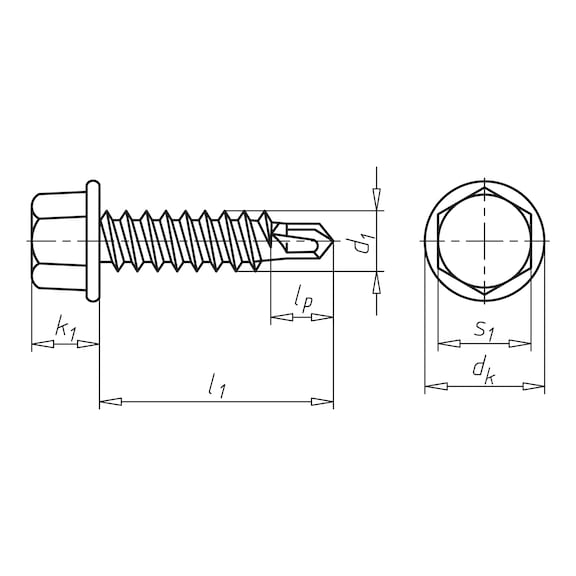

Technical Specifications
- Material: Bimetal
- Surface: Flake zinc
- RoHS-compliant: Yes
- Head type: Hexagon head with collar
- Drive type: Hexagon (WS8)
- Thread type: Self-tapping screw thread
- Shape of tip: Drilling tip
- Underground compatibility: Steel, Aluminum
- Nominal diameter: 4.8 mm
- Length: 38 mm
- Head diameter: 10.9 mm
- Head height: 5.4 mm
- Drill tip length: 6.5 mm
- Screw-thread length with drill tip: 35 mm
- Max. material thickness to be drilled through (metal): 4.4 mm
- Max. substructure thickness: 3.0 mm
- Min./max. attachment thickness: 1.8-23.0 mm
- Approval: ETA-10/0184
- Recommended installation speed (idling): 1700-2500 rpm
- Dimensions (H x L x W): 5.4mm x 38mm x 10.9mm
- Weight: 0.05 kg
Key Features
- Reduction of assembly time by at least 50% using drill bit tip
- Drilling without centre punching
- Thread moulding and securing all in one operation
- Hexagon head with collar and hexagon drive
- Self-tapping screw thread with drilling tip
- Approved according to ETA-10/0184
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper fastening and compliance with structural requirements.
Applications

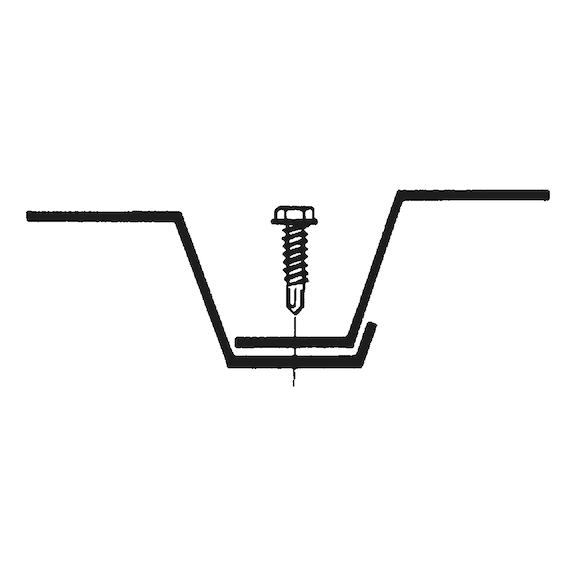

- Attaching metal profiles to metal substructures made of steel or aluminium
- Suitable for component combinations steel/steel, aluminium/steel, aluminium/aluminium
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable stainless steel construction extends product life and reduces waste
Warranty Information
Wurth standard product warranty applies.
Available Now
Wurth piasta® drilling screws are available for immediate purchase, ideal for metal construction and assembly applications.
