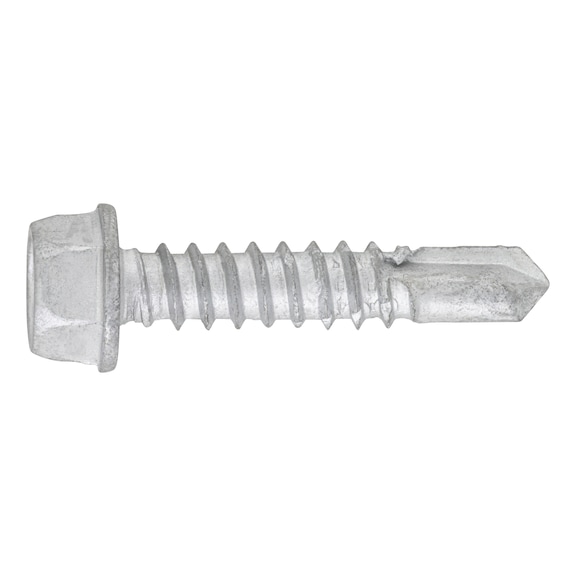

piasta® Drilling Screw | Hexagon Head A2 Stainless Steel | Drill Tip & Self-Tapping Thread | @Pack of 25 | by Wurth
The piasta® drilling screw features a hexagon head made of A2 stainless steel, equipped with a drill tip and self-tapping thread for efficient metal profile attachment. Ideal for professionals in construction and manufacturing, this screw reduces assembly time by at least 50% and allows for drilling without center punching, ensuring a secure fit in steel and aluminum substructures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: piasta® Drilling Screw | Hexagon Head A2 Stainless Steel | Drill Tip & Self-Tapping Thread | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 214815525
Alternatively Known As: Self-drilling screw, Hex head drilling screw, Metal drilling screw, piasta drilling screw
Technical Specifications
- Material: Bimetal
- Surface: Flake zinc
- RoHS-compliant: Yes
- Head type: Hexagon head with collar
- Drive type: Hexagon (WS8)
- Thread type: Self-tapping screw thread
- Shape of tip: Drilling tip
- Underground: Steel, Aluminum
- Nominal diameter: 5.5 mm
- Length: 26 mm
- Head diameter: 10.9 mm
- Head height: 5.4 mm
- Drill tip length: 7.5 mm
- Screw-thread length with drill tip: 23 mm
- Max. material thickness to be drilled through (metal): 5.25 mm
- Max. substructure thickness: 4.0 mm
- Min./max. attachment thickness: 2-3.0 mm
- Approval: ETA-10/0184
- Recommended installation speed (idling): 1200-1800 rpm
- Dimensions (H x L x W): 5.4mm x 26mm x 10.9mm
- Weight: 0.05 kg
Key Features
- Reduction of assembly time by at least 50% using drill bit tip
- Drilling without centre punching
- Thread moulding and securing all in one operation
- Hexagon head with collar and hexagon drive
- Self-tapping screw thread with drilling tip
- Approved according to ETA-10/0184
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure correct torque and fastening according to material specifications.
Applications
- Attaching metal profiles to metal substructures made of steel or aluminium
- Suitable for component combinations steel/steel, aluminium/steel, aluminium/aluminium
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable stainless steel construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth piasta® drilling screw hexagon head A2 stainless steel with drill tip 25 PCS is available for immediate purchase. Ideal for metal profile attachment in construction and manufacturing.
