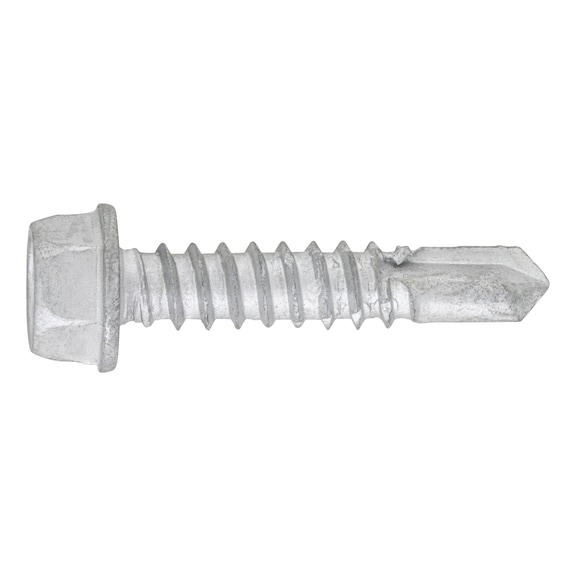

Piasta® Drilling Screw | Hexagon Head A2 Stainless Steel | Drill Tip & Moulded Thread | @Pack of 50 | by Wurth
Piasta® drilling screws are designed for efficient metal construction, featuring a hexagon head and A2 stainless steel for durability. With a drill tip and moulded thread, these screws reduce assembly time by at least 50% and allow for drilling without center punching. Ideal for attaching metal profiles to steel or aluminum substructures, they ensure secure fastening in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Piasta® Drilling Screw | Hexagon Head A2 Stainless Steel | Drill Tip & Moulded Thread | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 214814225
Alternatively Known As: Self-drilling screw, Hex head drilling screw, Metal profile screw, Bimetal drilling screw
Technical Specifications
- Material: Bimetal
- Surface: Flake zinc
- RoHS-compliant: Yes
- Head type: Hexagon head with collar
- Drive type: Hexagon (WS7)
- Thread type: Self-tapping screw thread
- Shape of tip: Drilling tip
- Underground: Steel, Aluminum
- Nominal diameter: 4.2 mm
- Length: 25 mm
- Head diameter: 8.8 mm
- Head height: 4 mm
- Drill tip length: 5.0 mm
- Screw-thread length with drill tip: 22 mm
- Max. material thickness to be drilled through (metal): 3.0 mm
- Max. substructure thickness: 2.0 mm
- Min./max. attachment thickness: 1.5-10.0 mm
- Approval: ETA-10/0184
- Recommended installation speed (idling): 1700-2500 rpm
- Dimensions (H x L x W): 4mm x 25mm x 8.8mm
- Weight: 0.05 kg
Key Features
- Reduction of assembly time by at least 50% using drill bit tip
- Drilling without centre punching
- Thread moulding and securing all in one operation
- Suitable for component combinations according to approval ETA-10/0184
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper fastening and compliance with safety standards.
Applications
- Attaching metal profiles to metal substructures made of steel or aluminium
- Suitable for steel/steel, aluminium/steel, and aluminium/aluminium component combinations
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable stainless steel construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Piasta® drilling screws are available for immediate purchase, ideal for metal construction and assembly applications.
