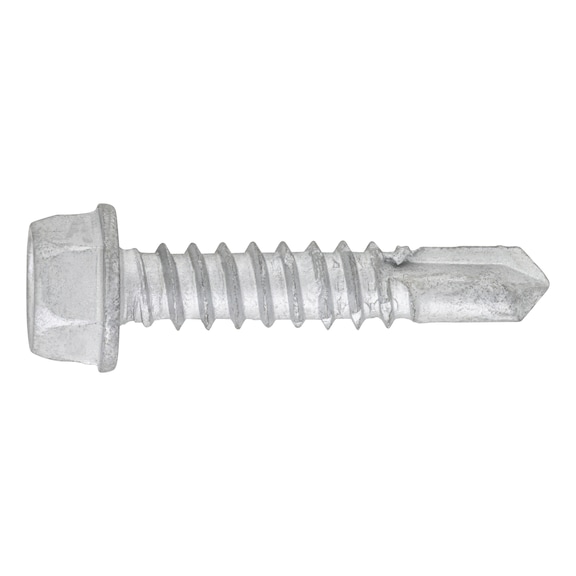

Piasta® Drilling Screw | Hexagon Head A2 Stainless Steel | Drill Tip & Self-Tapping Thread | @Pack of 50 | by Wurth
Piasta® drilling screws with hexagon head and A2 stainless steel construction are perfect for attaching metal profiles to steel or aluminum substructures. Featuring a drill tip and self-tapping thread, these screws reduce assembly time by at least 50% and eliminate the need for center punching. Ideal for professionals in construction and industrial applications, they ensure secure and efficient fastening.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Piasta® Drilling Screw | Hexagon Head A2 Stainless Steel | Drill Tip & Self-Tapping Thread | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 214814238
Alternatively Known As: Self-drilling screw, Hex head drilling screw, Metal drilling screw, Bimetal screw, Hexagon head screw
Technical Specifications
- Material: Bimetal
- Surface: Flake zinc
- RoHS-compliant: Yes
- Head type: Hexagon head with collar
- Drive type: Hexagon (WS7)
- Thread type: Self-tapping screw thread
- Shape of tip: Drilling tip
- Underground: Steel, Aluminum

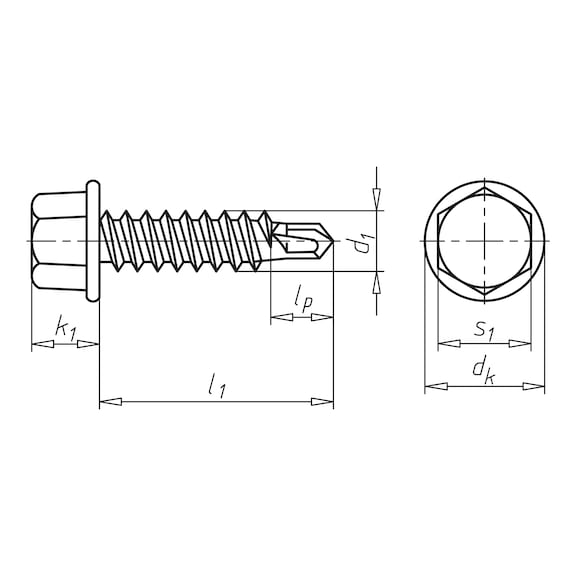

- Nominal diameter (d1): 4.2 mm
- Length (l1): 38 mm
- Head diameter (dk): 8.8 mm
- Head height (k1): 4 mm
- Drill tip length (lp): 5.0 mm
- Screw-thread length with drill tip: 35 mm
- Max. material thickness to be drilled through (metal): 3.0 mm
- Max. substructure thickness: 2.0 mm
- Min./max. attachment thickness: 1.5-23.0 mm
- Approval: ETA-10/0184
- Recommended installation speed (idling): 1700-2500 rpm
- Dimensions (H x L x W): 4mm x 38mm x 8.8mm
- Weight: 0.1 kg
Key Features
- Reduction of assembly time by at least 50% using the drill bit tip
- Drilling without centre punching
- Thread moulding and securing all in one operation
- Hexagon head with collar and hexagon drive
- Self-tapping screw thread with drilling tip
- Suitable for max. material thickness to be drilled through of 3.0 mm
- Approved under ETA-10/0184
Professional Installation Requirements
- Installation should be performed by professionals familiar with metal fastening and drilling screws to ensure proper torque and secure attachment.
Applications

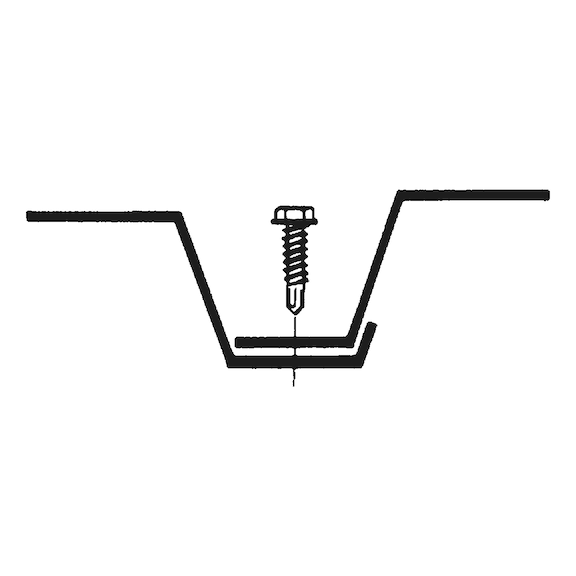

- Attaching metal profiles to metal substructures made of steel or aluminium
- Suitable for component combinations tl/tII according to approval ETA-10/0184
- Steel/steel applications for diameters 4.2 mm to 6.3 mm
- Aluminium/steel and aluminium/aluminium applications for diameter 4.8 mm
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable stainless steel construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth piasta® drilling screw hexagon head A2 stainless steel with drill tip 50 PCS is available for immediate purchase. Ideal for metal profile attachment in construction and industrial applications.
