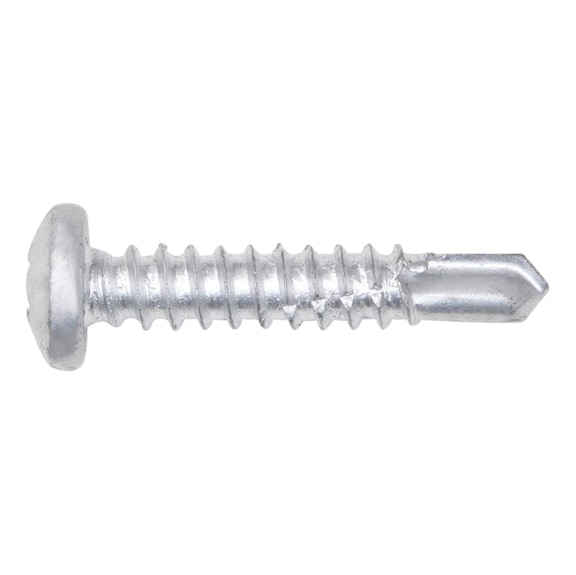

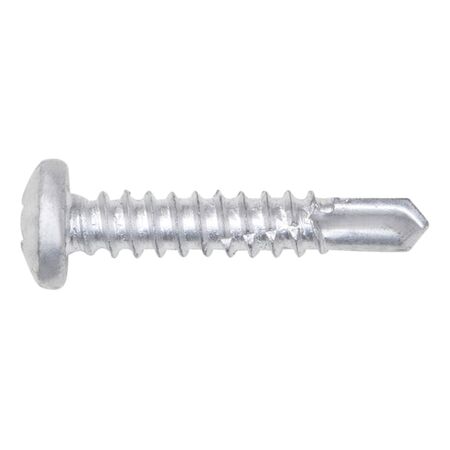

Piasta® Drilling Screw Round Head | A2 Stainless Steel | Cone Slot H Drive | 25 PCS | by Wurth
Piasta® drilling screws with a round head and hardened steel drill tip are perfect for fastening in aluminum and steel substructures. Designed for quick installation without center punching, these self-tapping screws reduce assembly time by at least 50%. Ideal for aesthetic fittings in visible areas, they ensure secure fastening with RoHS compliance for safety and environmental benefits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Piasta® Drilling Screw Round Head | A2 Stainless Steel | Cone Slot H Drive | 25 PCS | by Wurth
Brand: Wurth
SKU: 21184832
Alternatively Known As: Self-tapping drilling screw, Pan head drilling screw, Stainless steel drilling screw, Piasta drilling fastener
Technical Specifications
- Material: Bimetal
- Surface: Flake zinc
- Head type: Pan head
- Drive type: Cone slot H (H2)
- Thread type: Self-tapping screw thread
- Shape of tip: Drilling tip
- Nominal diameter: 4.8 mm
- Length: 32 mm
- Head diameter: 9.5 mm
- Head height: 3.5 mm
- Drill tip length: 6 mm
- Screw-thread length with drill tip: 29.5 mm
- Min. recommended substructure thickness: 1.5 mm
- Max. material thickness to be drilled through (metal): 4.4 mm
- Max. substructure thickness: 3 mm
- Min./max. attachment thickness: 1.5-17.75 mm
- Recommended installation speed (idling): 1700-2500 rpm
- Dimensions (H x L x W): 3.5mm x 32mm x 9.5mm
- Weight: 0.05 kg
Key Features
- Made of A2 stainless steel with hardened steel drill tip
- Shaped thread for secure fastening
- Cone slot H drive type
- Drill tip reduces assembly time by at least 50%
- Drilling without centre punching
- Thread moulding and securing in one operation
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper fastening and safety.
Applications
- Fastening in aluminum and steel substructures
- Aesthetic fittings in visible areas without additional sealing washer
- Suitable for steel and aluminum materials
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable stainless steel material extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Piasta® Drilling Screw Round Head with Recessed Head 25 PCS is available for immediate purchase, ideal for construction and metal fastening applications.
