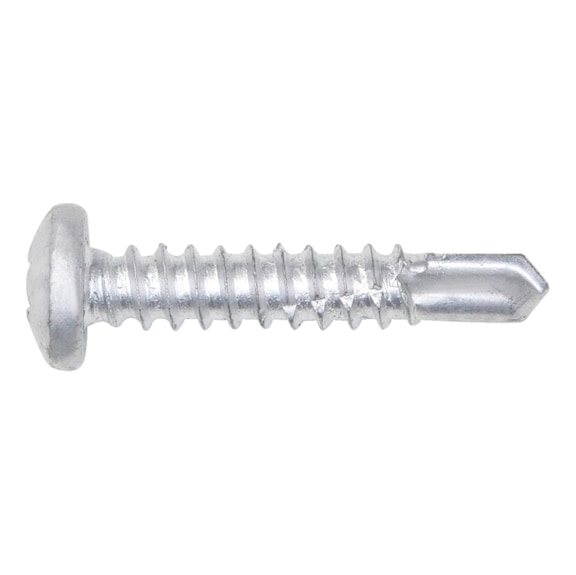

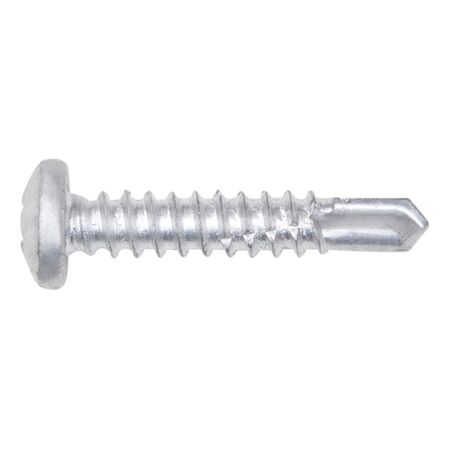

Piasta® Drilling Screw | Round Head with Recessed Head | A2 Stainless Steel | Self-Tapping | @Pack of 50 | by Wurth
Piasta® drilling screws with a round head and recessed design are perfect for fastening in aluminum and steel substructures. Made from durable A2 stainless steel, these self-tapping screws feature a hardened drill tip that reduces assembly time by 50%, making them ideal for professional installations. With RoHS compliance, they ensure safety and environmental responsibility in your projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Piasta® Drilling Screw | Round Head with Recessed Head | A2 Stainless Steel | Self-Tapping | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 21183519
Alternatively Known As: Self-tapping drilling screw, Pan head drilling screw, Stainless steel drilling screw, Piasta drilling fastener
Technical Specifications
- Material: Bimetal
- Surface: Flake zinc
- RoHS-compliant: Yes
- Head type: Pan head
- Drive type: H (cone slot)
- Thread type: Self-tapping screw thread
- Shape of tip: Drilling tip
- Underground compatibility: Steel, Aluminum
- Nominal diameter: 3.5 mm
- Length: 19 mm
- Head diameter: 7.5 mm
- Head height: 2.7 mm
- Drill tip length: 3.5 mm
- Screw-thread length with drill tip: 18 mm
- Internal drive: H2
- Min. recommended substructure thickness: 0.75 mm
- Max. material thickness to be drilled through (metal): 2.5 mm
- Max. substructure thickness: 1.5 mm
- Min./max. attachment thickness: 1-9 mm
- Recommended installation speed (idling): 1700-2500 rpm
- Dimensions (H x L x W): 2.7mm x 19mm x 7.5mm
- Weight: 0.05 kg
Key Features
- Made of A2 stainless steel with hardened steel drill tip
- Shaped thread for secure fastening
- Cone slot H drive type for efficient installation
- Drill tip reduces assembly time by at least 50%
- Drilling without centre punching
- Thread moulding and securing all in one operation
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper fastening and safety compliance.
Applications
- Fastening in aluminum and steel substructures
- Aesthetic fittings in visible areas without additional sealing washer
- Suitable for non-approved areas requiring durable fastening
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable stainless steel construction extends product life and reduces waste
Warranty Information
Wurth standard product warranty against manufacturing defects.
Available Now
Wurth Piasta® Drilling Screw Round Head with Recessed Head 50 PCS is available for immediate purchase, ideal for construction and metal fastening applications.
