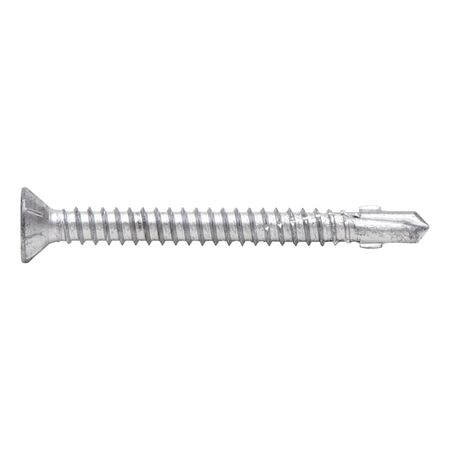

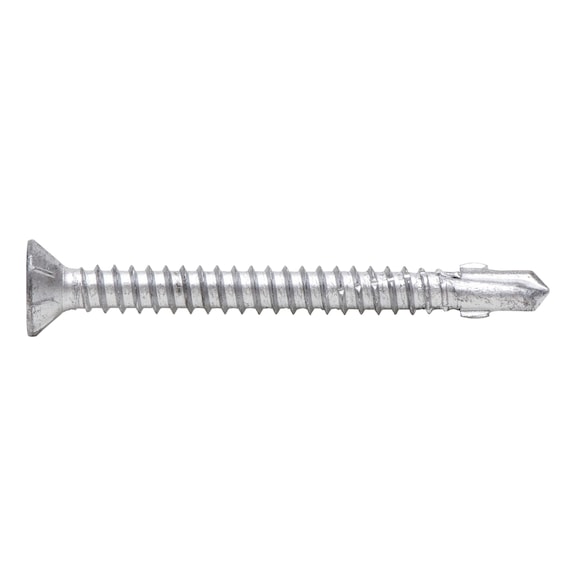

Piasta Wing Type Drilling Screw | Bimetal Construction | AW Drive System | Countersunk Milling Head | @Pack of 250 | by Wurth
The Piasta Wing Type Drilling Screw features a robust bimetal construction with an A2 stainless steel drilling tip, making it ideal for fastening in soft woods and metal applications. With its self-tapping thread and AW drive system, this screw ensures enhanced torque transmission and fatigue-free screwing, perfect for construction and woodworking projects requiring reliable, corrosion-resistant fasteners.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Piasta Wing Type Drilling Screw | Bimetal Construction | AW Drive System | Countersunk Milling Head | @Pack of 250 | by Wurth
Brand: Wurth
SKU: 215885555
Alternatively Known As: Wing Piasta Drilling Screw, Countersunk Milling Head Screw, AW Drive Wood Screw, Self-Tapping Wing Screw
Technical Specifications
- Nominal diameter: 5.5 mm
- Length: 55 mm
- Head diameter: 10.8 mm
- Head height: 4.4 mm
- Drill tip length: 11 mm
- Material: Bimetal (A2 stainless steel tip, case hardened steel)
- Surface: Flake zinc silver (RUSPERT® coated)
- Head type: Countersunk milling head
- Internal drive: AW25
- Thread type: Self-tapping screw thread
- Min. recommended substructure thickness: 2.0 mm
- Max. material thickness to be drilled through (metal): 5 mm
- Max. attachment thickness: 35 mm
- Recommended installation speed (idling): 1200-1800 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.4mm x 55mm x 10.8mm
- Weight: 0.05 kg
Key Features
- Bimetal construction with A2 stainless steel drilling tip made of case hardened steel
- RUSPERT® silver coating for enhanced corrosion resistance
- Self-tapping thread with countersunk milling head
- AW drive system for enhanced torque transmission and longer tool life
- Optimum centring and better mounting output with fatigue-free screwing
- Even force distribution prevents damage to surface protection coating
Professional Installation Requirements
- Installation should be performed using application tools with a depth stop and claw coupling. Use suitable drill drivers such as cordless drill drivers with depth stop for optimal performance and safety.
Applications
- Suitable for fastening in soft woods
- Ideal for use in construction and woodworking projects requiring self-tapping screws
- Recommended for applications needing corrosion-resistant fasteners with enhanced torque transmission
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable coating extends product life reducing waste
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
The Wurth Piasta Wing Type Drilling Screw Countersunk Milling Head with AW drive is available for immediate purchase. Ideal for construction, woodworking, and metal fastening applications requiring durable and corrosion-resistant screws.
