PICO QD Connection System | 3 Pins per Connection | 6 Ports | PNP LEDs | by Allen-Bradley
The PICO QD Connection System is designed for seamless integration in industrial automation systems, featuring a robust 3-pin connection and 6 ports for efficient parallel input. Ideal for factory assembly lines and machine control, this system includes PNP LEDs for clear status indication, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection Type: PICO QD (M8)
- Number of Pins: 3 pins per connection
- Number of Ports: 6 ports
- Input Configuration: Parallel 1 input per port
- Port Location: On top of the box
- Cable: No cable included
- LEDs: PNP type for status indication
- Pin Count for DC Micro QD: 8 pins
- Dimensions (H x L x W): 30mm x 80mm x 50mm
- Weight: 0.2 kg
Key Features
- PICO QD (M8) connection system
- Standard material construction
- PNP LEDs for status indication
- 3 pins per connection
- 6 ports with parallel 1 input per port
- Ports located on top of the box
- DC micro QD with 8 pins
- No cable included
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with industrial electrical connection systems.
Applications
- Industrial automation systems
- Factory assembly lines
- Machine control and monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Efficient connection system minimizes energy loss
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now

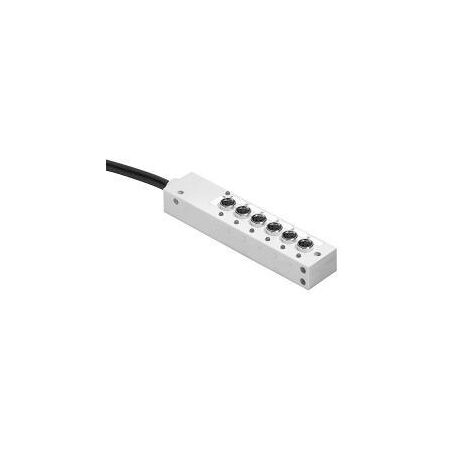

The Allen-Bradley 898PP36PTD8 PICO QD Connection System is available for immediate purchase, ideal for industrial automation and control applications.
