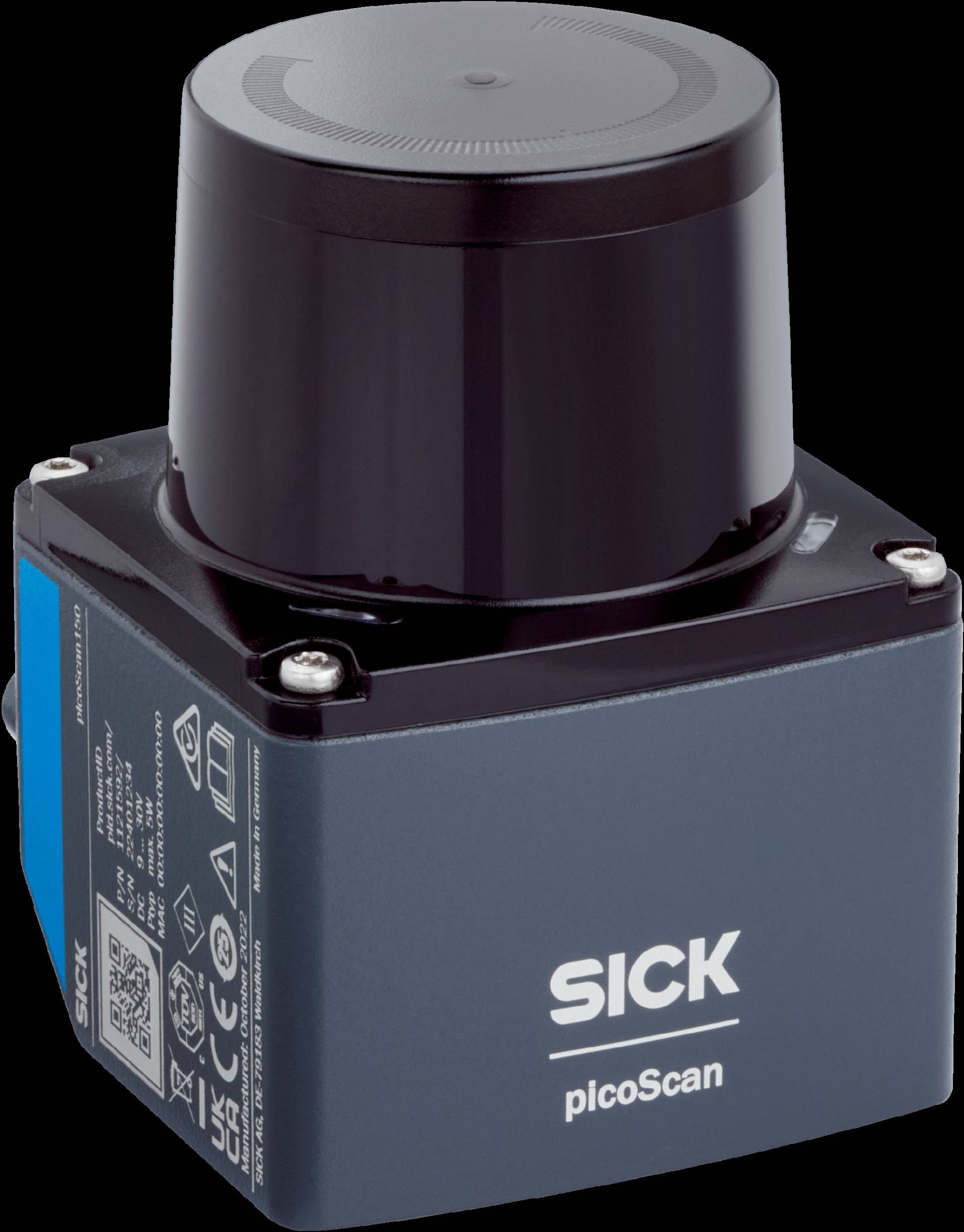

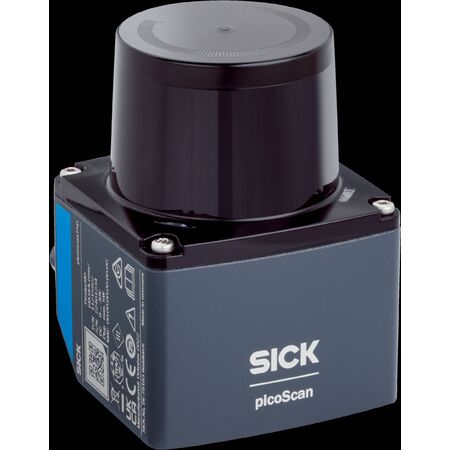

picoScan100 2D LiDAR Sensor | 25m Scanning Range | Multi-Echo Technology | Compact Design | by SICK
The picoScan100 2D LiDAR sensor is engineered for industrial automation, featuring a scanning range of 25m (up to 75m with 90% remission) and multi-echo technology for reliable object detection. Its compact and rugged design makes it ideal for both indoor and outdoor applications, ensuring high measurement accuracy even in harsh conditions. Perfect for professionals seeking precision in automation and contour localization tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: picoScan100 2D LiDAR Sensor | 25m Scanning Range | Multi-Echo Technology | Compact Design | by SICK
Brand: SICK
SKU: 1134607
Alternatively Known As: 2D LiDAR sensor, picoScan LiDAR, SICK LiDAR sensor, industrial LiDAR scanner
Technical Specifications
- Scanning range: 25 m (up to 75 m with 90% remission)
- Horizontal aperture angle: 276°
- Angular resolution (horizontal): 0.25°, 0.33°, 1°
- Scanning frequency: 15 Hz, 25 Hz (up to 50 Hz)
- Digital inputs/outputs: 3
- Integrated application: output of measurement data
- Multi-echo technology for enhanced detection
- Supports drivers for ROS, C++, and Python
- Dimensions (H x L x W): 100mm x 150mm x 100mm
- Weight: 1.5 kg
Key Features
- Compact, rugged housing suitable for demanding industrial applications
- Large scanning range up to 75 m with 90% remission
- Fine angular resolution from 0.5° to 0.05°
- High measurement accuracy with low noise and flat scan field
- Scan rate adjustable between 15 Hz and 50 Hz
- Multi-echo technology for reliable detection
- Supports drivers for ROS, C++, and Python
- Integrated applications such as contour localization on picoScan150-LOC
Professional Installation Requirements
- Installation by qualified professionals with experience in industrial sensor integration and electrical wiring is recommended to ensure optimal performance and safety.
Applications
- Industrial automation for indoor and outdoor environments
- Object detection including small and dark objects
- Measurement and contour localization tasks
- Robust sensing in harsh ambient conditions
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise automation reducing waste and energy consumption
- Robust design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years depending on purchase terms.
Available Now
The SICK picoScan100 2D LiDAR sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
