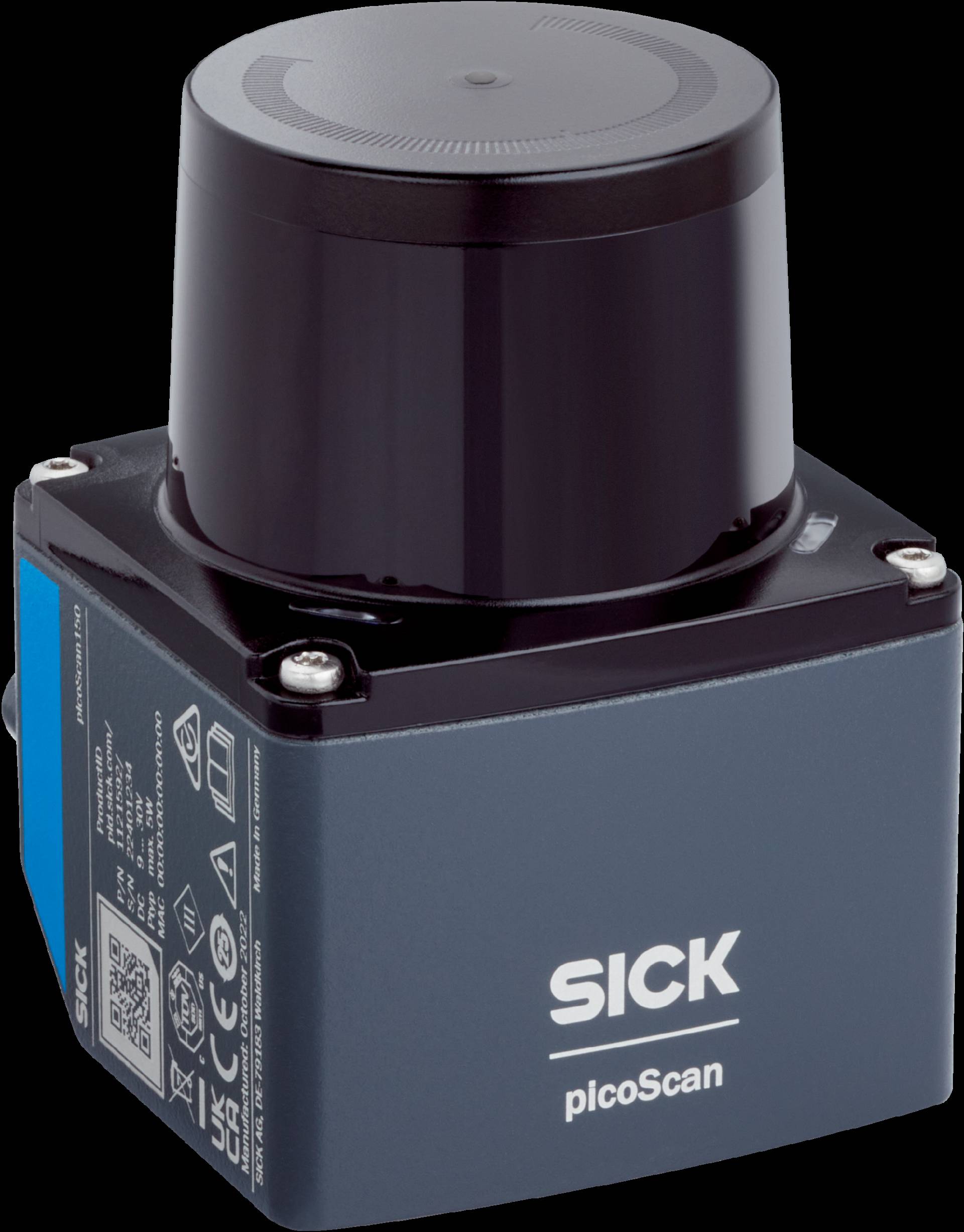

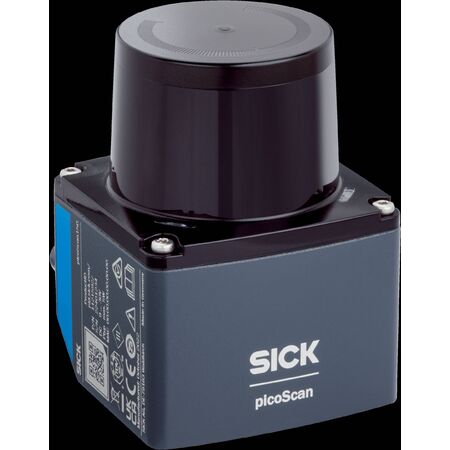

picoScan100 2D LiDAR Sensor | 25m Scanning Range | Multi-Echo Technology | Compact & Rugged | by SICK
The picoScan100 2D LiDAR sensor offers a scanning range of 25m, expandable to 75m with 90% remission, making it ideal for industrial automation and robotics. With its compact and rugged design, it excels in harsh environments, providing high measurement accuracy and multi-echo technology for reliable detection of small objects. Perfect for safety monitoring and precise 2D object detection in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: picoScan100 2D LiDAR Sensor | 25m Scanning Range | Multi-Echo Technology | Compact & Rugged | by SICK
Brand: SICK
SKU: 1142269
Alternatively Known As: 2D LiDAR sensor, picoScan LiDAR, industrial LiDAR scanner, SICK LiDAR sensor
Technical Specifications
- Scanning range: 25 m (up to 75 m with 90% remission)
- Horizontal aperture angle: 276°
- Angular resolution (horizontal): 0.25°, 0.33°, 1°
- Scanning frequency: 15 Hz, 25 Hz
- Digital inputs/outputs: 6
- Integrated application: 2D Object Detection
- Multi-echo technology for enhanced detection
- Supports Dynamic Sensing Profiles
- Dimensions (H x L x W): 100mm x 150mm x 100mm
- Weight: 1.5 kg
Key Features
- Compact, rugged housing suitable for harsh ambient conditions
- Large scanning range up to 75 m with 90% remission
- Fine angular resolution from 0.5° to 0.05°
- High measurement accuracy with low noise and flat scan field
- Scan rate adjustable between 15 Hz and 50 Hz
- Multi-echo technology for reliable detection of small and dark objects
- Supports integrated applications like contour localization on picoScan150-LOC
- Compatible with drivers for ROS, C++, and Python
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with LiDAR sensor integration and electrical safety standards to ensure optimal performance and compliance.
Applications
- Industrial indoor and outdoor applications requiring precise 2D object detection
- Automation and robotics for contour localization and environment scanning
- Safety and monitoring systems in manufacturing and logistics
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient sensor design reduces power consumption in industrial applications
- Enables precise automation reducing waste and improving operational efficiency
Warranty Information
Standard manufacturer warranty of 2 years covering defects in materials and workmanship.
Available Now
The SICK picoScan100 2D LiDAR sensor is available for immediate purchase, ideal for industrial automation, robotics, and safety monitoring applications.
