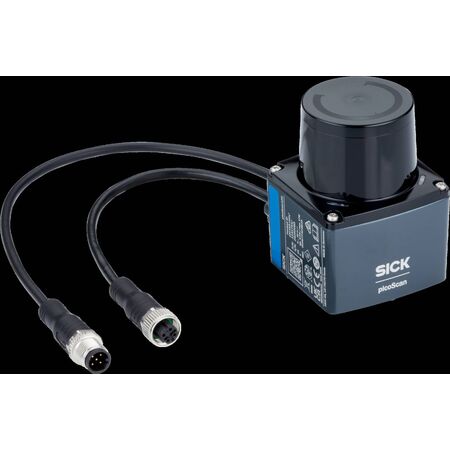

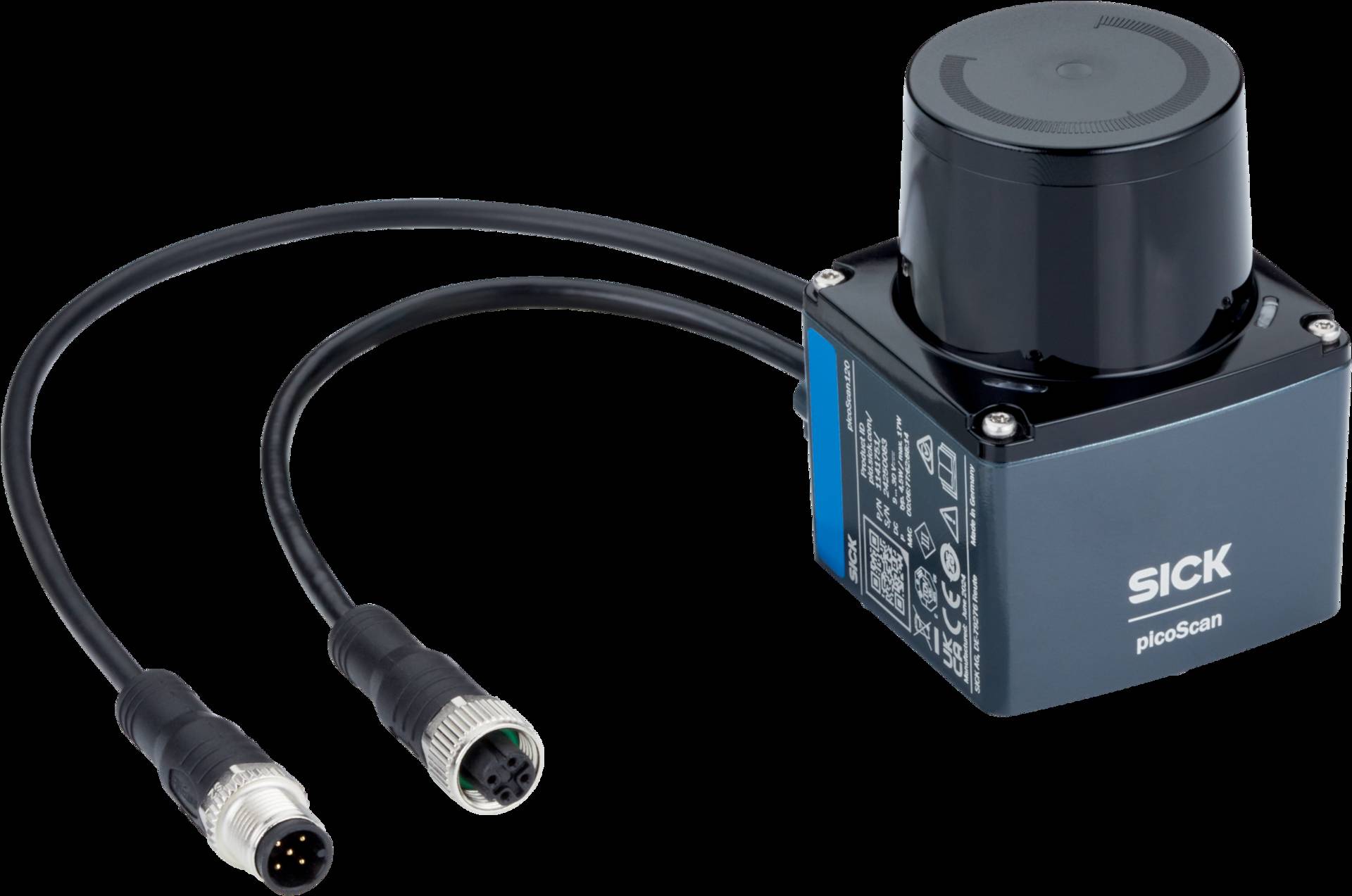

picoScan100 2D LiDAR Sensor | 30m Scanning Range | 276° Aperture Angle | Multi-Echo Technology | by SICK
The picoScan100 2D LiDAR sensor offers a scanning range of 30m, extending up to 75m at 90% remission, making it perfect for industrial automation and object detection. With a compact and rugged design, it features a 276° horizontal aperture angle and fine angular resolution for precise measurements. Ideal for both indoor and outdoor environments, this sensor ensures reliable performance even in harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: picoScan100 2D LiDAR Sensor | 30m Scanning Range | 276° Aperture Angle | Multi-Echo Technology | by SICK
Brand: SICK
SKU: 1141751
Alternatively Known As: 2D LiDAR sensor, picoScan LiDAR, SICK LiDAR sensor, industrial LiDAR scanner
Technical Specifications
- Scanning range: 30 m (standard), up to 75 m at 90% remission
- Horizontal aperture angle: 276°
- Angular resolution (horizontal): 0.1°
- Scanning frequency: 20 Hz
- Integrated application: output of measurement data
- Digital add-ons: LMDscandata data format, reflector detection
- Digital inputs/outputs: 1
- Multi-echo technology for enhanced detection reliability
- Dimensions (H x L x W): 100mm x 150mm x 100mm
- Weight: 1.5 kg
Key Features
- Compact, rugged housing
- Large scanning range up to 75 m (90% remission)
- Fine angular resolution from 0.5° to 0.05°
- Dynamic Sensing Profiles for adaptable scanning
- High measurement accuracy with low noise and flat scan field
- Scan rate adjustable between 15 Hz and 50 Hz
- Multi-echo technology for reliable detection
- Supports drivers for ROS, C++, and Python
- Integrated applications such as contour localization on picoScan150-LOC
Professional Installation Requirements
- Installation by qualified professionals with experience in industrial sensor systems is recommended to ensure optimal performance and safety.
Applications
- Industrial automation for indoor and outdoor environments
- Object detection including small and dark objects
- Measurement and contour localization tasks
- Robust sensing in harsh ambient conditions
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient sensor design reduces power consumption in industrial applications
- Enables precise automation reducing waste and improving resource efficiency
Warranty Information
Standard manufacturer warranty of 1 year covering defects in materials and workmanship.
Available Now
The SICK picoScan100 2D LiDAR sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
