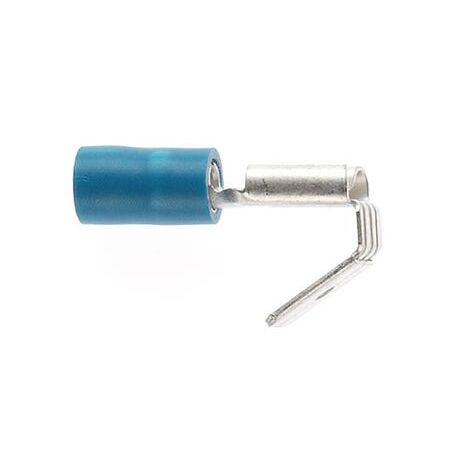

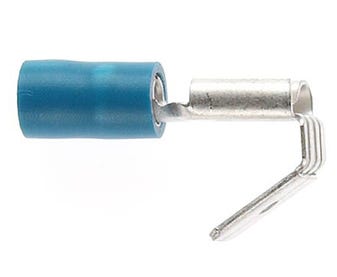

Piggy Back Quick Connect Terminal 6.4 x 0.8mm | PVC Insulated | 300V Rating | Blue by Cabac

BRAND: CABAC
SKU: PB2-6.4DG
$19.40 List price: $23.50
+ −
30 Days Return Delivery Options
The Cabac Piggy Back Quick Connect Terminal 6.4 x 0.8mm Blue is a high-quality pre-insulated terminal designed for reliable electrical connections with easy conductor entry and long-term electrical integrity.

Product Name/Title: Piggy Back Quick Connect 6.4 X 0.8mm Dg Blue

Brand: Cabac

SKU: PB2-6.4DG

Alternatively Known As: Piggy Back Terminal, Quick Connect Terminal, Pre-Insulated Terminal, Electrical Quick Connect, Blue Quick Connect Terminal

Technical Specifications
  • Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
  • Tensile Strength: 580 MPa
  • Ductile Rating: 6% min
  • Final Metal State: Annealed
  • Working Temperature: Pre-Insulate -40°C to +105°C, Brass 145°C, Tin plated 160°C
  • Electroplating Material: Tin with 99.9% Tin content, plating thickness 2.5 microns
  • Insulation Material: PVC (except nylon 6 or nylon 66 for FIQC)
  • Breakdown Voltage: 1.5kV (min)
  • Insulation Resistance: Above 100 meg ohms
  • Working Voltage: Up to 300V AC/DC
  • Conformant Standards: AS4437, AS3169 Australia
  • Dimensions (H x L x W): 0.8mm x 20mm x 6.4mm
  • Weight: 0.01 kg
Key Features
  • High quality product meeting International Standards
  • Funnel entry terminals allow easy conductor entry, minimizing substandard crimps
  • Long term electrical integrity
  • Translucent nylon in fully insulated quick connector reduces installation errors
  • Voltage rating 300V
  • Double grip - separate crimp barrels for conductor and insulation
  • PVC insulated
  • Conforms to AS 3169 and AS 4437
Professional Installation Requirements
  • Terminals should be crimped onto the conductor with a quality crimper designed for the specific terminal type. Professional installation by a qualified electrician is recommended to ensure safety and compliance.
Applications
  • Electrical wiring connections in switchgear, contactors, and terminal blocks
  • Industrial and commercial electrical installations requiring quick connect terminals
  • Maintenance and repair of electrical equipment
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste
  • High electrical efficiency reduces energy loss in connections
Warranty Information

Warranty details available upon request; product meets international quality assurance standards.

Available Now

The Cabac Piggy Back Quick Connect Terminal 6.4 x 0.8mm Blue is available for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable and quick terminal connections.
