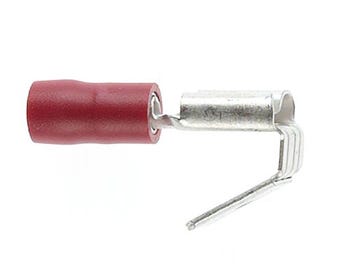

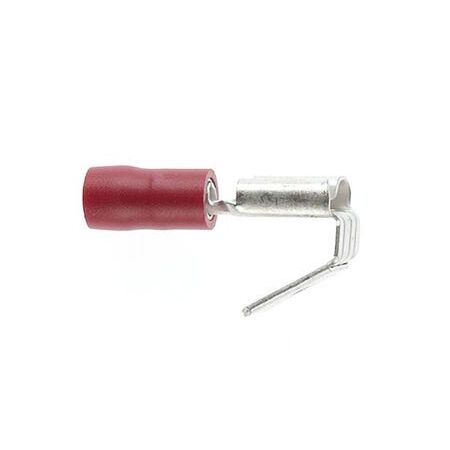

Piggy Back Quick Connect Terminal 6.4 x 0.8mm | PVC Insulated | 300V Rating | Easy Conductor Entry by Cabac

BRAND: CABAC
SKU: PB1.25-6.4DG
$19.40 List price: $23.50
+ −
30 Days Return Delivery Options
The Cabac Piggy Back Quick Connect Terminal 6.4 x 0.8mm Red is a high-quality pre-insulated terminal designed for reliable electrical connections with easy conductor entry and long-term electrical integrity.

Product Name/Title: Piggy Back Quick Connect 6.4 X 0.8mm Red

Brand: Cabac

SKU: PB1.25-6.4DG

Alternatively Known As: Piggyback Terminal, Quick Connect Terminal, Pre-insulated Terminal, Electrical Quick Connect, Red Quick Connect Terminal

Technical Specifications
  • Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
  • Tensile Strength: 580 MPa
  • Ductile Rating: 6% min
  • Final Metal State: Annealed
  • Working Temperature: Pre-Insulate -40°C to +105°C, Brass 145°C, Tin plated 160°C
  • Electroplating Material: Tin with 99.9% Tin Content
  • Plating Thickness: 2.5 microns
  • Insulation Material: PVC
  • Breakdown Voltage: 1.5kV (min)
  • Insulation Resistance: Above 100 meg ohms
  • Working Voltage: Up to 300V AC/DC
  • Conformant Standards: AS4437, AS3169 Australia
  • Dimensions (H x L x W): 0.8mm x 15mm x 6.4mm
  • Weight: 0.01 kg
Key Features
  • High quality product meeting International Standards
  • Funnel entry terminals allow easy conductor entry, minimising substandard crimps
  • Long term electrical integrity
  • Translucent nylon in fully insulated quick connector reduces installation errors
  • Voltage rating 300V
  • Full technical backup including QA
  • Double grip - separate crimp barrels for conductor and insulation
  • PVC insulated
Professional Installation Requirements
  • Terminals should be crimped onto the conductor with a quality crimper designed for the specific terminal type. Professional installation by a qualified electrician is recommended.
Applications
  • Electrical wiring connections in switchgear
  • Contactors and terminal blocks
  • General electrical and power connectivity applications
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS3169
  • AS4437
Environmental Benefits
  • Durable materials reduce the need for frequent replacements
  • Ensures secure electrical connections reducing energy loss
  • PVC insulation is recyclable
Warranty Information

Warranty details available upon request from manufacturer.

Available Now

The Cabac Piggy Back Quick Connect Terminal 6.4 x 0.8mm Red is available for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable and easy-to-install terminals.
