Pillar Base with Button Bolt Kit | Lightweight & Corrosion-Proof | IP44 Rated | Green by Cabac

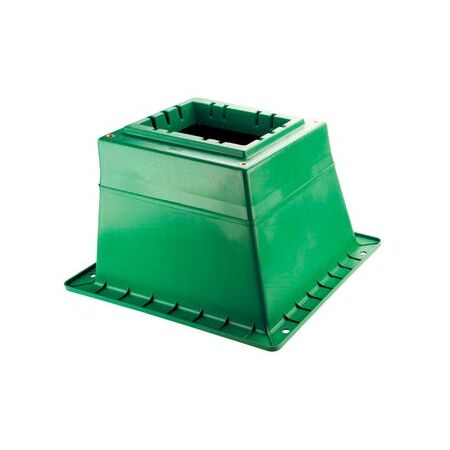

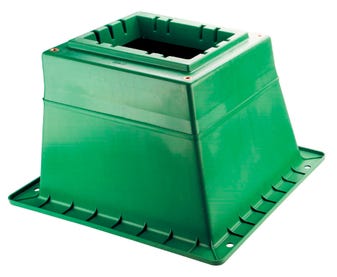

The Cabac Pillar Base with Button Bolt Kit in Green is a versatile moulded plastic base designed for direct burial or slab mounting, offering high stability and corrosion resistance for electrical pillar installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pillar Base With Button Bolt Kit - Green
Brand: Cabac
SKU: PBB-G-IM-BBK
Alternatively Known As: Pillar Box Base, Electrical Pillar Base, Plastic Pillar Base, Pillar Mounting Base, Electrical Base with Button Bolts
Technical Specifications
- Material: Polypropylene copolymer resin
- Flame Retardant to 750°C minimum (AS2420 Appendix B)
- Wall Thickness: Minimum 4mm
- Yield Tensile Strength: 24 MPa minimum
- Vicat Softening Point: 150°C (ASTM1526)
- Izod Notch Impact: 500 J/m minimum (ASTM D256)
- Melt Flow Index: 1.5 g/10 min (ASTM1238 Condition E)
- IP Rating: IP44 when attached to CABAC base
- Dimensions (H x L x W): 300mm x 300mm x 300mm
- Weight: 2 kg
Key Features
- Lightweight for ease of handling, transport, and storage
- Slots for four standard fuse panels or one large panel
- Wide skirt for increased stability
- Upturned skirt lip increases resistance to pull out
- Flat bottom for slab mounting with dyna holes included
- Corrosion-proof brass inserts for cover bolts
- Wall design allows drilling for side entry
- Stackable design to reduce storage costs
- Datum line provided to indicate burial depth
Professional Installation Requirements
- Professional installation recommended to ensure correct mounting and compliance with electrical safety standards.
Applications
- Direct burial installations for electrical pillar bases
- Slab mounting for electrical pillar bases
- Stabilised soil or concrete mounting on steel framework for unstable soils or steep slopes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from durable polypropylene copolymer resin for long service life reducing replacement waste
- Flame retardant material enhances safety and reduces fire risk
- Lightweight design reduces transportation energy and emissions
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Pillar Base With Button Bolt Kit - Green is available for immediate purchase, ideal for electrical pillar installations requiring durable and stable mounting solutions.
