Pillar Base with D Bolt Kit | Lightweight Design | IP44 Rated | Green by Cabac

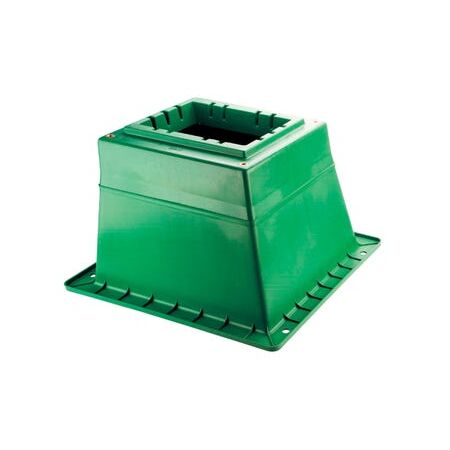

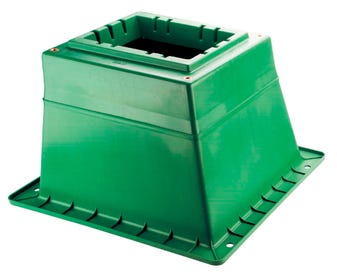

The Cabac Pillar Base with D Bolt Kit in Green is a versatile moulded plastic base designed for direct burial or slab mounting, offering high stability and corrosion resistance for electrical pillar installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Polypropylene copolymer with additive rubberiser
- Thermal Conductivity: 0.121 W/mK at 23°C
- Thermal Coefficient of Linear Expansion: 86°C -1 x 10–
- Flame Retardancy: 750°C min (AS2420 App B)
- Wall Thickness: Minimum 4mm
- Yield Tensile Strength: 24 MPa min (ASTM D638-77A at 23°C)
- Vicat Softening Point: 143°C (ASTM1526)
- Izod Notch Impact: 500 J/m min (ASTM D256 at 23°C)
- Melt Flow Index: 1.5 g/10 min (ASTM1238 Condition E)
- IP Rating: IP44 (when attached to CABAC base)
- Dimensions (H x L x W): 300mm x 300mm x 300mm
- Weight: 2 kg
Key Features
- Lightweight for ease of handling, transport, and storage
- Slots for four standard fuse panels or one large panel
- Wide skirt for increased stability
- Upturned skirt lip increases resistance to pull out
- Flat bottom with dyna holes for slab mounting
- Corrosion-proof brass inserts for cover bolts
- Wall design allows drilling for side entry
- Stackable design to reduce storage costs
- Datum line provided to indicate burial depth
Professional Installation Requirements
- Professional installation recommended to ensure correct burial depth and secure mounting, especially on steep slopes or unstable soils.
Applications
- Direct burial for electrical pillar bases
- Slab mounting for electrical installations
- Stabilised soil or concrete mounting on steel frameworks
- Suitable for use with fuse panels in electrical pillars
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from durable polypropylene copolymer with rubberiser for long life
- Corrosion-proof materials reduce need for replacements
- Lightweight design reduces transportation energy consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Pillar Base With D Bolt Kit - Green is available for immediate purchase, ideal for electrical pillar installations requiring durable and stable mounting solutions.
