Pillar Base Large Mouth | 326mm x 224mm Opening | UV Stabilised LS3 Polymer | High Capacity by Cabac

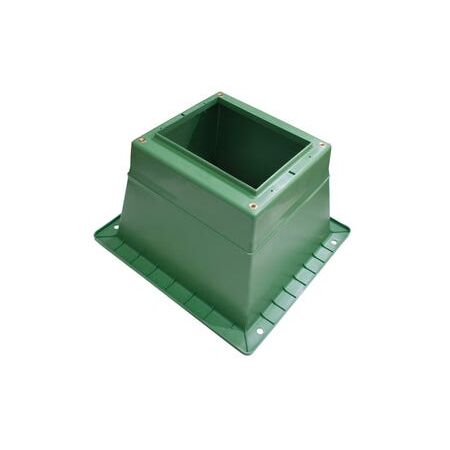

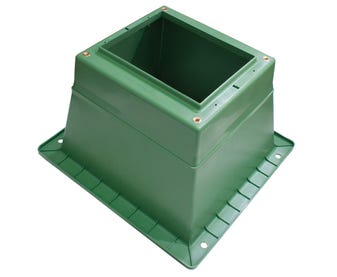

The Cabac Pillar Base Large Mouth with Button Bolts is a durable, UV stabilised distribution cover designed for underground cable reticulation, providing additional internal capacity and secure fastening with button bolts.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pillar Base large mouth w BUTTBolts - GR
Brand: Cabac
SKU: PBBL-G-I-BBK
Alternatively Known As: Pillar Box Base, Underground Cable Distribution Cover, Vented Pillar Box Base, Cable Reticulation Base
Technical Specifications
- Material: Ultra-violet stabilised LS3 polymer
- Compatibility: Fits CABAC standard and high capacity vented pillar boxes
- Internal Capacity Increase: 25.7% additional volume
- Mouth Size: 326mm x 224mm
- Fastening: Supplied with allen key button bolts
- Dimensions (H x L x W): 224mm x 400mm x 326mm
- Weight: 5 kg
Key Features
- Large opening base with wide mouth 326x224mm to fit large cables
- Accommodates high capacity vented pillar box providing 25.7% additional internal capacity
- Supplied with allen key button bolts for secure fastening
- Ultra-violet stabilised LS3 material for long life exposure to sunlight
- High impact absorption and resistance to contaminants
- Rigid cover free from distortion
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure compliance with electrical safety standards.
Applications
- Underground cable reticulation distribution cover
- Suitable for standard and high capacity vented pillar boxes
- Electrical and power connectivity infrastructure
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- UV stabilised material extends product life reducing replacement frequency and waste
- High resistance to contaminants minimizes environmental degradation
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms for details.
Available Now
The Cabac Pillar Base Large Mouth with Button Bolts is available now for immediate purchase. Ideal for underground cable reticulation and electrical distribution applications.
