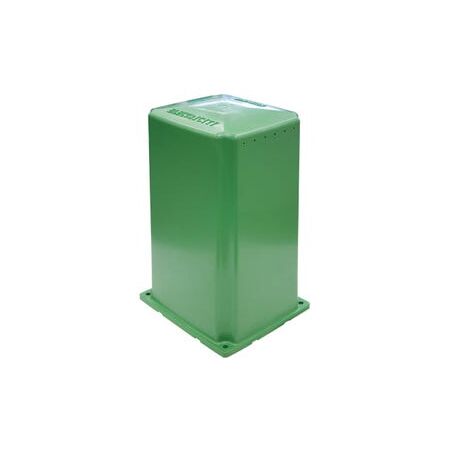

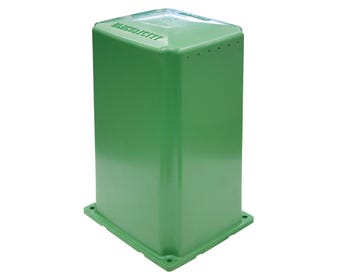

Pillar Lid High Capacity Vented | 25.7% Extra Capacity | UV Stabilised Polymer | Bottom Venting by Cabac
The Cabac Pillar Lid High Capacity Vented provides a durable, cost-effective distribution cover with enhanced internal capacity and ventilation features, designed to fit existing bases and meet essential energy specifications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PILLAR LID HIGH CAPACITY VENTED TO ESSENTIAL ENERGY SPECIFICATIONS
Brand: Cabac
SKU: PBHCV-EE
Alternatively Known As: Pillar Box Lid, High Capacity Vented Pillar Cover, Underground Cable Distribution Lid, Ventilated Pillar Box Cover
Technical Specifications
- Additional internal capacity: 25.7%
- Material: Ultra-violet stabilised LS3 polymer
- Ventilation: Bottom venting channel and optional top venting
- Design: Baffle system to manage condensation
- Compatibility: Fits existing bases with standard bolt pattern and dimensions
- Durability: High impact absorption and resistance to contaminants
- Dimensions (H x L x W): 555mm x 400mm x 400mm
- Weight: 5 kg
Key Features
- Bottom venting channel allowing free airflow while blocking water and foreign bodies
- Optional top venting to exhaust hot air and maintain lower operating temperatures
- Baffle system to condense humid air and divert water condensation outside
- Recyclable material
- Pillars can be stacked to reduce storage costs
- Additional 25.7% internal capacity
- New pillar design fits existing bases with standard bolt pattern and dimensions
- Ultra-violet stabilised to LS3 for long life exposure to sunlight
- High impact absorption and resistance to contaminants
- Rigid cover free from distortion
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper fitting and compliance with underground cable reticulation standards.
Applications
- Underground cable reticulation distribution cover
- Electrical and power connectivity installations
- Suitable for use with existing pillar bases
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from recyclable materials
- UV stabilised for long life reducing replacement frequency
- Design promotes airflow reducing heat buildup and energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Pillar Lid High Capacity Vented is available for immediate purchase, ideal for electrical and power connectivity applications requiring durable and ventilated distribution covers.
