Pillar Lid High Capacity Vented | 25.7% Increased Capacity | Bottom Venting & Baffle System | UV-Stabilised by Cabac

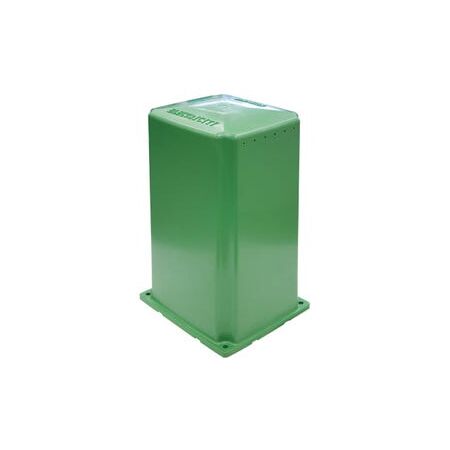

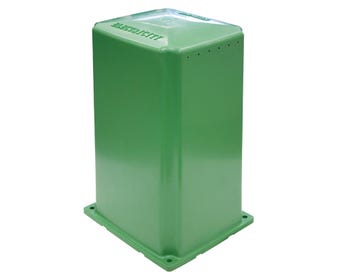

The Cabac Pillar Lid High Capacity Vented is a robust, UV-stabilised distribution cover designed for underground cable reticulation. It features enhanced internal capacity, venting for airflow, and a durable, recyclable construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PILLAR LID HIGH CAPACITY VENTED
Brand: Cabac
SKU: PBHCV
Alternatively Known As: Pillar Box Lid, High Capacity Cable Pillar Cover, Vented Pillar Box Lid, Underground Cable Distribution Cover
Technical Specifications
- Material: Ultra-violet stabilised LS3 polymer
- Internal capacity increased by 25.7%
- Bottom venting channel for airflow and water obstruction
- Optional top venting for heat exhaust
- Baffle system for condensation management
- Fits existing bases with standard bolt pattern and dimensions
- Dimensions (H x L x W): 555mm x 400mm x 400mm
- Weight: 5 kg
Key Features
- Bottom venting channel allows free airflow while blocking water and foreign bodies
- Optional top venting to exhaust hot air and maintain lower operating temperatures
- Baffle system condenses humid air and diverts water condensation outside
- Recyclable material construction
- Pillars can be stacked to reduce storage costs
- Additional 25.7% internal capacity compared to standard models
- New innovative design fits existing bases with standard bolt pattern and dimensions
- Ultra-violet stabilised material for long life exposure to sunlight
- High impact absorption and resistance to contaminants
- Rigid cover free from distortion
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper fitting and compliance with electrical safety standards.
Applications
- Underground cable reticulation distribution cover
- Electrical and power connectivity infrastructure
- Suitable for use with existing pillar bases in electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable materials reducing environmental impact
- UV stabilisation extends product life reducing waste
- Design promotes airflow reducing overheating and energy loss
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific warranty details.
Available Now
The Cabac Pillar Lid High Capacity Vented is available for immediate purchase, ideal for underground cable distribution and electrical infrastructure applications.
