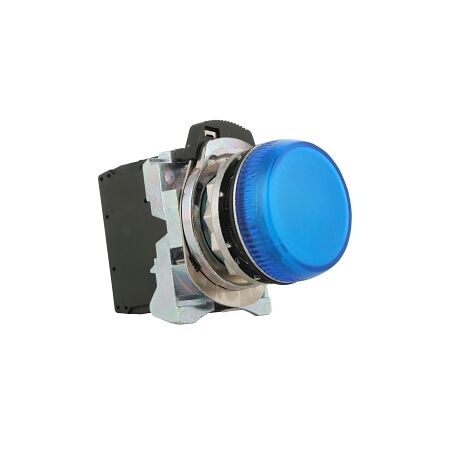

Pilot Light 22.5mm | 120V AC | IP65/IP66 Rated | Metal LED Blue by NHP
Pilot light with 22.5mm round design and metal front ring—ideal for industrial control panels and commercial equipment status indication. Built for durability, with IP65/IP66 dust and water protection and easy screw connection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sprecher and Schuh D7 Pilot Light 22.5mm Complete Metal LED 120V AC Blue
Brand: NHP
SKU: D7MP6MN5W
Alternatively Known As: LED Indicator Light, Pilot Light, Control Panel Light
Technical Specifications
- Voltage Type: AC
- Rated Current: 0.03 A
- Rated Frequency: 50-60 Hz
- Operating Voltage: 120 V
- Degree of Protection: IP65/IP66
- Material Front Ring: Metal
- Construction Type Lens: Round
- Max Shock Acceleration: 100 g
- Max Vibration Frequency Operational: 2000 Hz
- Max Vibration Acceleration: 10 m/s²
- Luminous Intensity: 0 cd
- Hole Diameter: 22.5 mm
- Dimensions (H x L x W): 22.5mm x 29.6mm x 29.6mm
- Weight: 0.2 kg
Key Features
- 22.5mm round design with metal front ring.
- IP65/IP66 rated for dust and water protection.
- Screw connection for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control panels, machinery indicators
- Commercial: Equipment status indication
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Long-lasting LED technology reduces waste and energy consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Pilot Light 22.5mm Complete Metal LED 120V AC Blue is available now for immediate purchase. Ideal for industrial and commercial applications.
