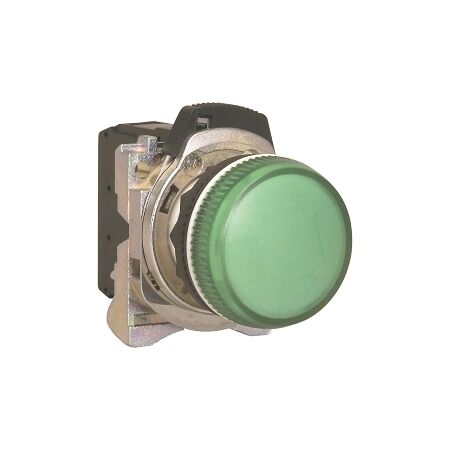

Pilot Light 22.5mm Green Lens | 120V AC | IP65/IP66 Rated | Metal by NHP
Pilot light with 22.5mm round design and green lens—ideal for industrial and commercial applications. Built for durability, with IP65/IP66 protection and energy-efficient 120V AC operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sprecher and Schuh D7 Pilot Light 22.5 mm Complete Metal LED 120V AC Green Lens
Brand: NHP
SKU: D7MP3MN5G
Alternatively Known As: LED Indicator Light, Pilot Light, 22.5mm Indicator, Green Lens Pilot Light
Technical Specifications
- Voltage Type: AC
- Rated Current: 0.03 A
- Type of Electric Connection: Screw connection
- Number of Indicator Lights: 1
- Rated Frequency: 50-60 Hz
- Lamp Power: 1 W
- Operating Voltage: 120 V
- Colour Lens: Green
- Degree of Protection: IP65/IP66
- Material Front Ring: Metal
- With Light Source: Yes
- Construction Type Lens: Round
- Max Shock Acceleration: 100 g
- Max Vibration Frequency Operational: 2000 Hz
- Max Vibration Acceleration: 10 m/s²
- Luminous Intensity: 0.01 cd
- Hole Diameter: 22.5 mm
- Diameter Cap: 29.6 mm
- Dimensions (H x L x W): 22.5mm x 29.6mm x 29.6mm
- Weight: 0.1 kg
Key Features
- 22.5mm round design with a green lens for clear visibility.
- IP65/IP66 rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery and equipment control
- Commercial: Panel indicators and signaling
- General: Any application requiring visual indication of power status
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Energy-efficient design with low power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Pilot Light 22.5 mm is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable visual indication.
