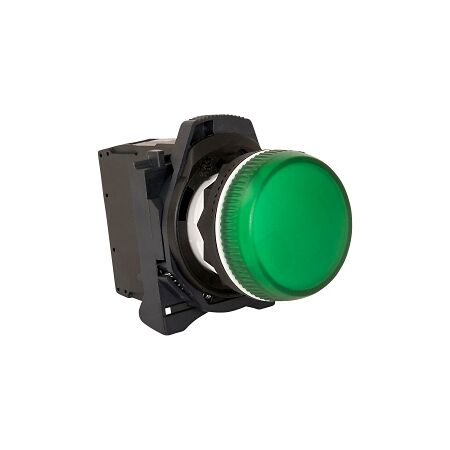

Pilot Light 22.5mm LED Module | 24V AC/DC | Green Lens | IP66 by NHP
Pilot light with 22.5mm round design and green lens—ideal for industrial control panels and commercial equipment status indication. Built for durability, with IP66 protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 800F Pilot Light 22.5mm Complete Metal LED Module 24V AC DC Green
Brand: NHP
SKU: 800FMP3MN3G
Alternatively Known As: 800F Pilot Light, 22.5mm LED Indicator, Green LED Module
Technical Specifications
- Voltage Type: AC/DC
- Rated Current: 0.03 A
- Type of Electric Connection: Screw connection
- Number of Indicator Lights: 1
- Rated Frequency: 50-60 Hz
- Operating Voltage: 24 V
- Colour Lens: Green
- Degree of Protection: IP66
- Material Front Ring: Metal
- With Light Source: Yes
- Construction Type Lens: Round
- With Front Ring: Yes
- Max Shock Acceleration: 100 g
- Max Vibration Frequency Operational: 2000 Hz
- Max Vibration Acceleration: 10 m/s²
- Luminous Intensity: 0.01 cd
- Hole Diameter: 22.5 mm
- Dimensions (H x L x W): 22.5mm x 29.6mm x 29.6mm
- Weight: 0.2 kg
Key Features
- 22.5mm round design with a green lens for clear visibility.
- IP66 rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control panels, machinery indicators
- Commercial: Equipment status indication
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Long-lasting LED technology reduces waste and energy consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 800F Pilot Light 22.5mm Complete Metal LED Module 24V AC DC Green is available now for immediate purchase. Ideal for industrial and commercial applications.
