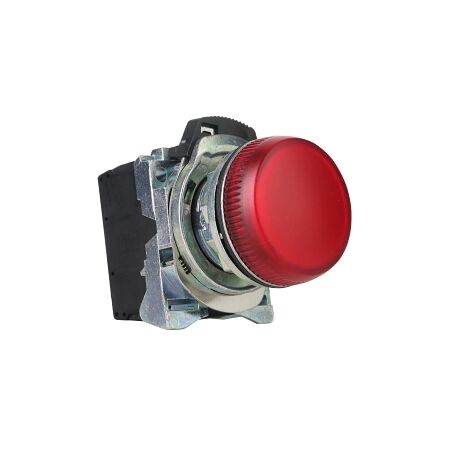

Pilot Light 22.5mm Metal LED | 120V AC | IP65/IP66 Rated | Red by NHP

BRAND: NHP
SKU: D7MP4MN5R
$90.00 List price: $119.60
+
Pilot light with 22.5mm metal design and 120V AC operation—ideal for industrial control panels and commercial equipment. Built for durability, with IP65/IP66 dust and water protection and easy screw connection.

Product Name/Title: Sprecher and Schuh D7 Pilot Light 22.5mm Complete Metal LED 120V AC Red

Brand: NHP

SKU: D7MP4MN5R

Alternatively Known As: LED Indicator Light, Pilot Light, Control Panel Light

Technical Specifications
  • Operating Voltage: 120 V
  • Rated Current: 0.03 A
  • Lamp Power: 1 W
  • Rated Frequency: 50-60 Hz
  • Luminous Intensity: 0.01 cd
  • Max Shock Acceleration: 100 g
  • Max Vibration Frequency Operational: 2000 Hz
  • Max Vibration Acceleration: 10 m/s²
  • Hole Diameter: 22.5 mm
  • Dimensions (H x L x W): 22.5mm x 29.6mm x 22.5mm
  • Weight: 0.1 kg
Key Features
  • 22.5mm round design with a metal front ring.
  • IP65/IP66 rated for dust and water protection.
  • Screw connection for easy installation.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and performance.
Applications
  • Industrial: Control panels, machinery indicators
  • Commercial: Equipment status indication
Standards & Compliance
  • Complies with relevant safety standards for electrical components.
Environmental Benefits
  • Energy-efficient design with low power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh D7 Pilot Light 22.5mm Complete Metal LED 120V AC Red is available now for immediate purchase. Ideal for industrial and commercial applications.

Non-Returnable & Non-Cancellable

D7MP4MN5R-AU-Pilot-Light-22.5mm-Datasheet.pdf (D7MP4MN5R-AU-Pilot-Light-22.5mm-Datasheet.pdf, 323 Kb) [Download]
