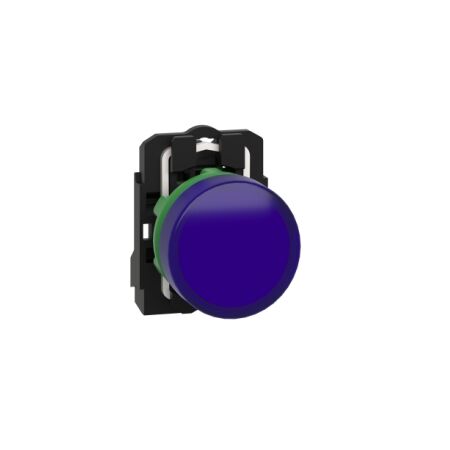

Pilot Light 22mm Blue LED | IP66/IP67/IP69K | 230-240V AC by Clipsal
Pilot light with 22mm blue LED and IP66/IP67/IP69K ratings—ideal for industrial control panels and machinery indicators. Built for durability, with universal LED light source and high protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Harmony XB5, Pilot light, grey plastic, blue, 22mm, universal LED, plain lens, 230...240V AC
Brand: Clipsal
SKU: XB5AVM6
Alternatively Known As: XB5 Pilot Light, Blue LED Indicator, Harmony XB5 Light
Technical Specifications
- Rated supply voltage: 230...240V AC at 50/60 Hz
- Current consumption: 14 mA
- Service life: 100,000 hours at rated voltage and 25 °C
- Resistance to high pressure washer: 7000000 Pa at 55 °C
- Vibration resistance: 5 gn (f= 12-500 Hz)
- Shock resistance: 50 gn (duration = 18 ms)
- Electromagnetic compatibility: electrostatic discharge - test level: 6 kV on contact
- Dimensions (H x L x W): 42mm x 54mm x 30mm
- Weight: 0.038 kg
Key Features
- IP66, IP67, and IP69K rated for high protection against dust and water.
- Universal LED light source with a blue plain lens.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Control panels, machinery indicators
- Commercial: Equipment signaling, safety indicators
Standards & Compliance
- Complies with IEC 60947-1 and other relevant standards.
Environmental Benefits
- Packaging made with recycled cardboard and without single-use plastic.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB5 Pilot Light is available now for immediate purchase. Ideal for industrial signaling applications.
