Pilot Light 22mm Universal LED | IP66/IP67/IP69K | Grey Plastic by Clipsal
Pilot light with universal LED and plain lens, rated 230-240V AC—ideal for industrial control panels and machinery indicators. Built for durability, with IP66/IP67/IP69K protection and a long service life of 100,000 hours.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

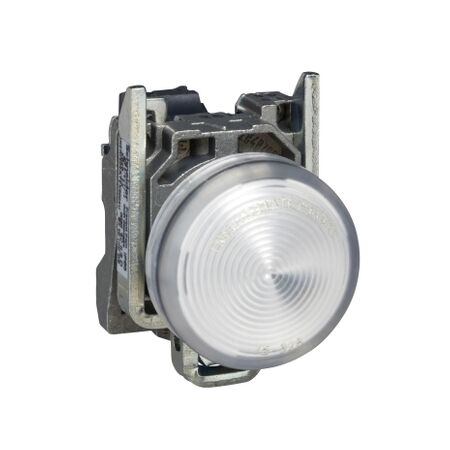

Product Name/Title: Harmony XB4, Pilot light, grey plastic, white, 22mm, universal LED, plain lens, 230...240V AC
Brand: Clipsal
SKU: XB4BVM1
Alternatively Known As: XB4 Pilot Light, LED Indicator Light, Industrial Pilot Light
Technical Specifications
- Rated supply voltage: 230...240V AC 50/60 Hz
- Current consumption: 14 mA
- Service life: 100,000 hours at rated voltage and 25 °C
- IP Rating: IP66/IP67/IP69/IP69K
- IK Rating: IK06
- Electrical shock protection class: Class I
- Resistance to high pressure washer: 7000000 Pa at 55 °C
- Dimensions (H x L x W): 47mm x 54mm x 30mm
- Weight: 0.08 kg
Key Features
- Universal LED light source with a plain lens.
- IP66/IP67/IP69/IP69K rated for high protection against dust and water.
- Long service life of 100,000 hours at rated voltage.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Control panels, machinery indicators
- Commercial: Equipment signaling, safety indicators
Standards & Compliance
- Complies with IEC 60947-1 and other relevant standards.
Environmental Benefits
- Green Premium product status indicating environmentally friendly design.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB4 Pilot Light is available now for immediate purchase. Ideal for industrial signaling applications.
