Pilot Light 22mm Universal LED | IP66/IP67/IP69K | Grey Plastic by Clipsal
Pilot light with universal LED and plain lens, rated 230...240V AC—ideal for industrial and commercial signaling. Built for durability, with high shock and vibration resistance and IP66/IP67/IP69K protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

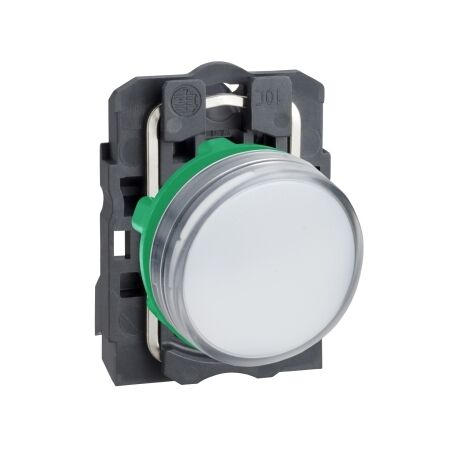

Product Name/Title: Harmony XB5, Pilot light, grey plastic, white, 22mm, universal LED, plain lens, 230...240V AC
Brand: Clipsal
SKU: XB5AVM1
Alternatively Known As: XB5 Pilot Light, LED Indicator Light, Industrial Pilot Light
Technical Specifications
- Rated supply voltage: 230...240V AC at 50/60 Hz
- Current consumption: 14 mA
- Service life: 100,000 hours at rated voltage and 25 °C
- Resistance to high pressure washer: 7000000 Pa at 55 °C
- Rated insulation voltage: 250 V
- Rated impulse withstand voltage: 4 kV
- Vibration resistance: 5 gn
- Shock resistance: 50 gn
- Dimensions (H x L x W): 42mm x 54mm x 30mm
- Weight: 0.038 kg
Key Features
- Universal LED light source with a plain lens.
- IP66, IP67, and IP69K rated for high protection against dust and water.
- High resistance to shock and vibration.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery and equipment signaling
- Commercial: Control panels and indicators
Standards & Compliance
- Complies with IEC 60947 for safety and performance standards.
Environmental Benefits
- Green Premium product with eco-friendly packaging.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB5 Pilot Light is available now for immediate purchase. Ideal for industrial signaling applications.
