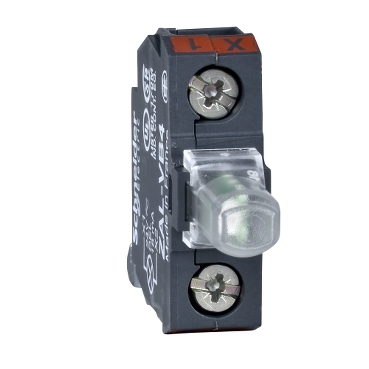

Pilot Light Body | Durable Thermoplastic | IP20 Rated | 22mm Mounting | @Pack of 1 | by Clipsal
The Pilot Light Body is designed for reliable indicator applications, featuring a durable thermoplastic construction and compatibility with standard pilot light lamps. With a 22mm mounting diameter and IP20 ingress protection, it's perfect for industrial control panels and switchboards, ensuring secure lamp operation and easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pilot Light Body | Durable Thermoplastic | IP20 Rated | 22mm Mounting | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHXALV5
Alternatively Known As: Indicator Light Base, Panel Light Holder, Control Panel Pilot Light Body, SCHXALV5 Light Base
Technical Specifications
- Mounting diameter: 22mm
- Material: High-quality thermoplastic
- Lamp compatibility: Suitable for standard pilot light lamps
- Voltage rating: Up to 250V AC (lamp dependent)
- Operating temperature: -25°C to +70°C
- Ingress protection: IP20 (when installed)
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Durable construction for long service life
- Compatible with Clipsal pilot light lenses and lamps
- Easy installation into standard 22mm panel cutouts
- Secure lamp holder for reliable operation
- Suitable for a wide range of indicator applications
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with Australian electrical safety standards.
Applications
- Industrial control panels
- Switchboards
- Electrical distribution boards
- Machinery status indication
- Commercial and industrial electrical installations
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports energy-efficient indicator lamps
- Long-lasting design reduces replacement frequency and waste
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal SCHXALV5 Pilot Light Body is available for immediate purchase. Ideal for use in control panels, switchboards, and industrial indicator applications.
