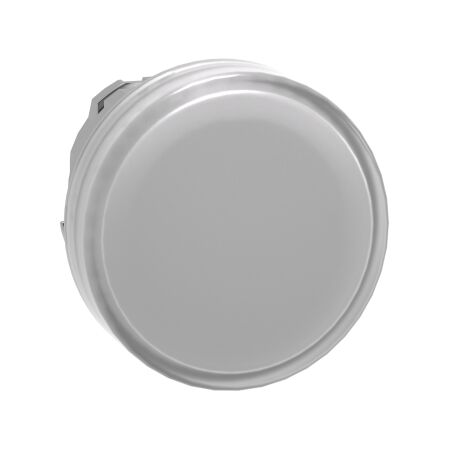

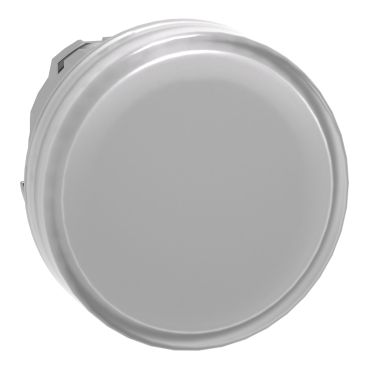

Pilot Light Head | 22mm Metal Design | White Lens | IP66 & IP69K Rated | by Clipsal
The Pilot Light Head is a robust 22mm metal indicator designed for clear status indication with its white plain lens. Ideal for industrial control panels and automation systems, this durable light head is compatible with BA9s bulbs and features IP66 and IP69K ratings for superior protection against dust and water. Perfect for commercial and manufacturing facilities, it ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pilot Light Head | 22mm Metal Design | White Lens | IP66 & IP69K Rated | by Clipsal
Brand: Clipsal
SKU: SCHZB4BV013S
Alternatively Known As: 22mm Pilot Light Head, Harmony XB4 Indicator Head, White Pilot Light Lens, SCHZB4BV013S, Clipsal Indicator Light Head
Technical Specifications
- Head type: Pilot light head
- Range: Harmony XB4
- Material: Metal
- Lens color: White
- Lens type: Plain
- Mounting diameter: 22mm
- Bulb compatibility: BA9s base (bulb not included)
- Front ring material: Chromium plated metal
- Degree of protection: IP66, IP69, IP69K
- Operating temperature: -40°C to +70°C
- Dimensions (H x L x W): 30mm x 40mm x 30mm
- Weight: 0.1 kg
Key Features
- 22mm diameter metal head for robust durability
- White plain lens for clear status indication
- Compatible with BA9s bulbs
- Part of Harmony XB4 range for modularity
- Easy installation and replacement
- Corrosion-resistant metal construction
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Electrical switchboards
- Machinery status indication
- Automation systems
- Commercial and manufacturing facilities
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long-lasting design reduces replacement frequency and waste
- Energy-efficient when used with LED BA9s bulbs
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB4 Pilot Light Head SCHZB4BV013S is available for immediate purchase. Ideal for industrial control panels, switchboards, and machinery status indication.
