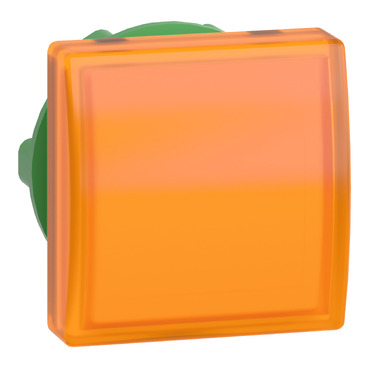

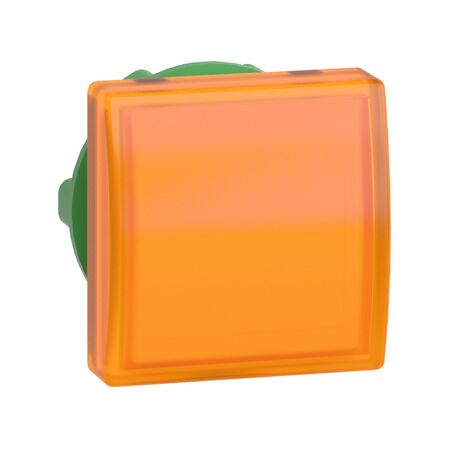

Pilot Light Head | 22mm Mounting Diameter | Square Orange Lens | IP66 Rated | by Clipsal
The Pilot Light Head is designed for clear status indication in industrial control panels, featuring a 22mm mounting diameter and a square orange lens for integral LED illumination. Built for robust performance in harsh environments, it’s perfect for electrical switchboards and automation systems, ensuring compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pilot Light Head | 22mm Mounting Diameter | Square Orange Lens | IP66 Rated | by Clipsal
Brand: Clipsal
SKU: SCHZB5CV053
Alternatively Known As: Schneider Harmony XB5 Pilot Light Head, 22mm Orange Indicator, Panel Mount Pilot Light, XB5CV053, Control Panel Indicator Light
Technical Specifications
- Mounting diameter: 22mm
- Lens color: Orange
- Lens type: Plain
- Shape: Square
- Illumination: For integral LED
- Material: Plastic
- Operating temperature: -25°C to +70°C
- Ingress protection: IP66 (front face when installed)
- Dimensions (H x L x W): 30mm x 40mm x 30mm
- Weight: 0.1 kg
Key Features
- Square orange pilot light head for clear status indication
- Ø22mm mounting diameter fits standard panel cutouts
- Plain lens design for integral LED illumination
- Robust construction for industrial environments
- Compatible with Schneider Electric Harmony XB5 range
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Electrical switchboards
- Machinery status indication
- Automation systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- LED compatibility reduces energy consumption and extends operational life.
- Durable materials minimize replacement frequency and waste.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal SCHZB5CV053 Square Orange Pilot Light Head is available for immediate purchase. Ideal for industrial control panels, switchboards, and automation systems.
