Pilot Light Head 22mm | Universal LED | IP69K Rated | Chromium Bezel by Clipsal
Pilot light head with 22mm mounting diameter and universal LED compatibility—ideal for industrial and commercial signaling. Built for durability, with IP69K rating and chromium plated metal bezel.
Sign in
Please login to continue to your account.

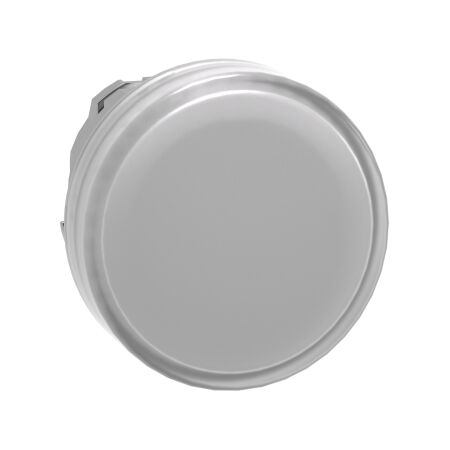

Product Name/Title: Harmony XB4, Head for Pilot light, metal, white, 22mm, universal LED, plain lens
Brand: Clipsal
SKU: ZB4BV013
Alternatively Known As: Pilot Light Head, LED Indicator Head, Harmony XB4 Pilot Light
- Mounting diameter: 22 mm
- Ambient air temperature for operation: -40...70 °C
- Vibration resistance: 5 gn (f= 2-500 Hz)
- Shock resistance: 30 gn (duration = 18 ms)
- Overvoltage category: class I conforming to IEC 60536
- Dimensions (H x L x W): 29mm x 30mm x 29mm
- Weight: 0.026 kg
- IP66, IP67, IP69K rated for high protection against dust and water.
- Compatible with universal LED blocks.
- Chromium plated metal bezel for durability.
- Professional installation is recommended for optimal performance and safety.
- Industrial: Control panels, machinery indicators
- Commercial: Equipment signaling, safety indicators
- Complies with IEC 60947-5-4, IEC 60947-5-5, IEC 60947-5-1
- Packaging made with recycled cardboard and without single-use plastic.
18 months warranty against manufacturing defects.
The Clipsal Harmony XB4 Head for Pilot Light is available now for immediate purchase. Ideal for industrial signaling applications.
