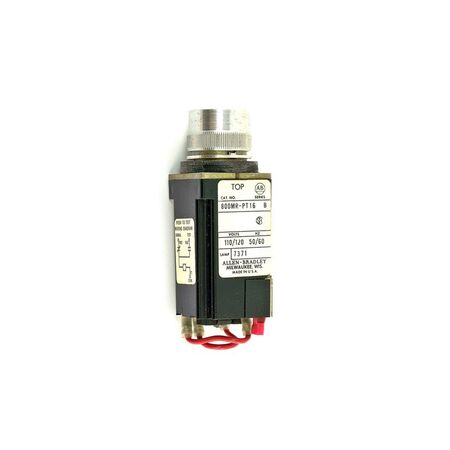

Pilot Light Unit Transformer | 22.5mm | Push-to-Test Functionality | Incandescent Lamp | by Allen-Bradley
The Pilot Light Unit Transformer is designed for reliable status indication in industrial control panels. Featuring a 22.5mm size and push-to-test functionality, this incandescent lamp ensures easy wiring with stab terminals. Ideal for machinery status indication and electrical equipment signaling, it offers long-lasting performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage: 120V AC 50/60 Hz
- Lamp Type: Incandescent
- Size: 22.5mm
- Terminals: Stab terminals
- Lens: None
- Function: Transformer with push-to-test
- Dimensions (H x L x W): 30mm x 40mm x 30mm
- Weight: 0.1 kg
Key Features
- 22.5mm pilot light unit
- Transformer with push-to-test functionality
- Incandescent lamp
- No lens design
- Stab terminals for easy wiring
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery status indication
- Electrical equipment signaling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long-lasting incandescent lamp reduces frequent replacements.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800MRPT16 Pilot Light Unit is discontinued by the manufacturer but available for immediate purchase through Radwell with a 2-year warranty. Ideal for industrial control panel applications.
