Pin Connector for 0.5-1.5mm² Cable | Double Grip Design | Vibration Resistant | PVC Insulation by Cabac

BRAND: CABAC
SKU: PC1.25DG
$31.90 List price: $38.60
+ −
30 Days Return Delivery Options

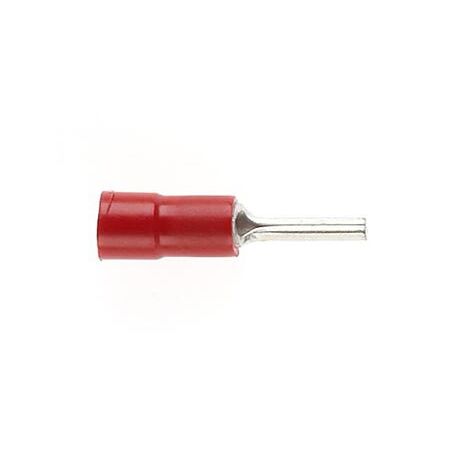

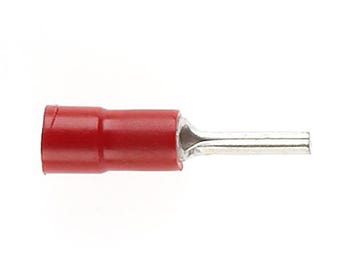

The Cabac Pinconnector Red DG Wirerange 0.5-1.5mm2 is a pre-insulated double grip pin connector terminal designed for high vibration applications, offering enhanced stability, durability, and superior wire insulation.

Product Name/Title: Pinconnector Red Dg Wirerange 0.5-1.5mm2

Brand: Cabac

SKU: PC1.25DG

Alternatively Known As: Double Grip Pin Connector, Pre-Insulated Pin Terminal, High Vibration Terminal, Red Pin Connector 0.5-1.5mm2

Technical Specifications
  • Pre-insulated pin connector terminal for 0.5-1.5mm² cable.
  • Double grip design with additional copper sleeve for enhanced vibration resistance.
  • Copper terminal body with PVC insulation.
  • Operating temperature up to 75°C.
  • Operating voltage: 600V.
  • Manufactured according to AS 3169 and AS 4437 standards.
  • RoHS and REACH compliant.
  • Dimensions (H x L x W): 20mm x 30mm x 10mm
  • Weight: 0.01 kg
Key Features
  • Double grip design engineered to withstand high vibration conditions.
  • Additional copper sleeve enhances vibration resistance and improves wire insulation.
  • Copper terminal body with PVC insulation for reliable electrical conductivity and insulation.
  • Operates within a temperature range up to 75°C.
  • Operating voltage of 600V.
Professional Installation Requirements
  • Crimp terminals onto conductors using a quality crimper designed for this terminal type to ensure a secure and durable connection.
Applications
  • Automotive and Aerospace Industries: Ideal for use in vehicles, aircraft, and other transportation systems with high vibration levels.
  • Heavy Machinery and Equipment: Suitable for industrial machinery and equipment subject to constant vibrations.
  • Marine Applications: Well-suited for marine environments with vibrations from engines and machinery.
  • Power Distribution Systems: Reliable for use in power distribution systems requiring stability and durability.
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • RoHS compliant, restricting hazardous substances to reduce environmental impact.
  • REACH compliant, ensuring chemical safety and environmental protection.
Warranty Information

Warranty details are subject to supplier terms; typically includes coverage against manufacturing defects.

Available Now

The Cabac Pinconnector Red DG Wirerange 0.5-1.5mm2 is available for immediate purchase, ideal for high vibration electrical applications in automotive, aerospace, marine, and industrial machinery.
