Pin Connector 25mm2 | High-Purity Copper | UL 94 V2 Fire Safety | Black Insulation by Cabac

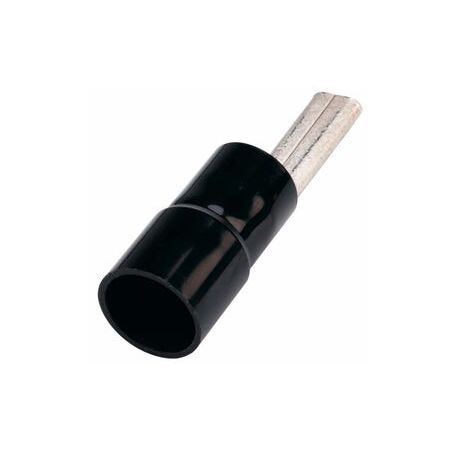

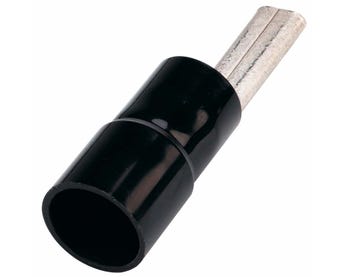

Cabac Pin Connector 25mm2 Black features durable black nylon insulation and high-purity tin-plated copper for secure, efficient electrical connections with fine-stranded wires, suitable for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pin Connector 25mm2 Black
Brand: Cabac
SKU: PC25
Alternatively Known As: 25mm2 Pin Terminal Connector, Black Insulated Pin Connector, Electrical Pin Connector 25mm²
Technical Specifications
- Operating Temperature Range: -20°C to +115°C, surge capacity up to +130°C
- Insulated Cover Colour: Black (RAL 9005)
- Type of Insulation: Partial
- Conductor Body Material: Electrolytic copper, purity >99.9%, rolled, tin-plated, brazed
- Internal Surface of Barrel: Knurled for improved grip and secure connection
- Dimensions (H x L x W): 10mm x 60mm x 40mm
- Weight: 0.02 kg
Key Features
- Insulation Material: Black nylon (Polyamide PA6.6), durable and resistant to environmental factors
- Insulated Sleeve Design with funnel-shaped internal surface for easy conductor strand introduction
- Conductor Material: High-purity electrolytic copper (above 99.95%) for excellent conductivity
- Electrolytically tin-plated surface coating (minimum 3 µm) to prevent oxidation
- Annealed copper tube for optimum ductility, flexibility, and durability
- Funnel entry design enables straightforward wire insertion
- Fire Safety: Classified UL 94 V2 self-extinguishing fire class
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal connection performance.
Applications
- Electrical wiring for larger conductors
- Connections for fine-stranded wires
- Industrial and commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Tin plating prevents corrosion, extending product life and reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Pin Connector 25mm2 Black is available for immediate purchase, ideal for electrical wiring and connectivity applications requiring reliable and durable terminals.
