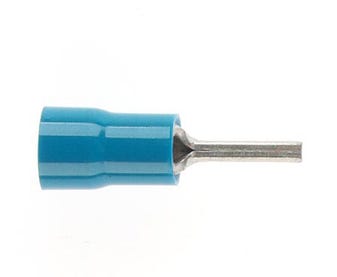

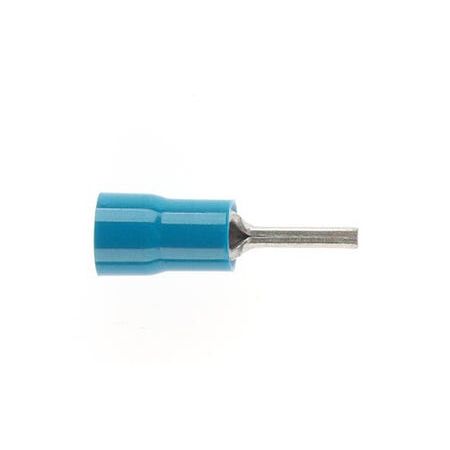

Pin Connector Blue 1-2.5mm² | Copper Terminal | Nylon Insulation by Cabac
Pin connector with 1-2.5mm² wire range and copper terminal—ideal for electrical, automotive, and industrial applications. Built for fast wire termination, with nylon insulation and halogen-free materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pin Connector Blue Wire Range 1-2.5mm2
Brand: Cabac
SKU: PC2
Alternatively Known As: Pre-Insulated Pin Terminal, Blue Pin Connector, Electrical Pin Terminal, Wire Termination Connector
Technical Specifications
- Cable Size Range: 1.0-2.6mm²
- Material: Copper terminal body with nylon insulation
- Temperature Rating: Up to 105°C
- Voltage Rating: 600V
- Design: Single grip with funnel entry for fast wire termination
- Halogen-free components
- Compliance: AS 3169, AS 4437, RoHS, REACH
- Dimensions (H x L x W): 30mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Single grip design with funnel entry for fast and efficient wire termination.
- Copper terminal body providing excellent electrical conductivity.
- Nylon insulation, both copper and nylon components are completely halogen-free.
- Operates within a temperature range up to 105°C.
- Operating voltage of 600V.
- Manufactured in strict accordance with international standards AS 3169 and AS 4437.
- RoHS and REACH compliant.
Professional Installation Requirements
- Crimp terminals onto conductors using a quality crimper designed for this terminal type to ensure secure and long-lasting connections.
Applications
- Electrical Wiring Systems: Ideal for connecting wires in electrical panels, control systems, and distribution boards.
- Automotive Applications: Suitable for use in automotive wiring for connections in vehicles and other transportation systems.
- Industrial Equipment: Well-suited for terminating wires in industrial machinery and equipment, ensuring reliable electrical connections.
- General Electrical Installations: Widely used in various electrical installations where a secure and efficient wire termination is required.
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free materials reduce environmental impact.
- RoHS and REACH compliance ensures reduced hazardous substances and chemical safety.
Warranty Information
Warranty details are subject to supplier terms; typically covered against manufacturing defects.
Available Now
The Cabac Pre-Insulated Pin Connector Terminal Blue 1-2.5mm² is available now for immediate purchase. Ideal for electrical wiring, automotive, and industrial applications.
