Pin Connector Yellow DG | Pre-Insulated | 300V Rating | Brass Material by Cabac

BRAND: CABAC
SKU: PC0.3DG
$48.90 List price: $59.20
+ −
30 Days Return Delivery Options

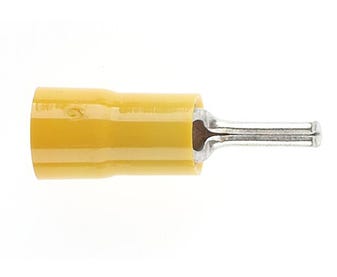

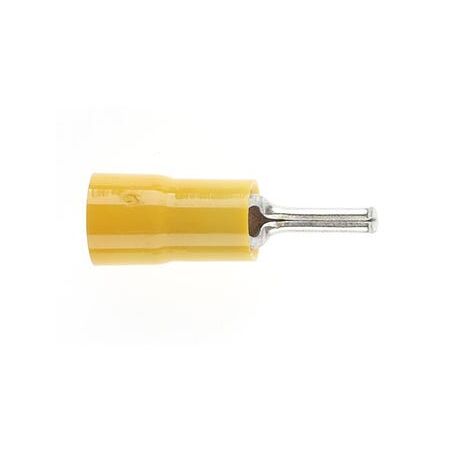

The Cabac Yellow Pin Connector 0.3MM DG is a high-quality pre-insulated terminal designed for fine conductor cable terminations, ensuring long-term electrical integrity and compliance with Australian standards.

Product Name/Title: Pin Connector Yellow DG

Brand: Cabac

SKU: PC0.3DG

Alternatively Known As: Yellow Pin Terminal, Pre-Insulated Pin Connector, Electrical Pin Connector 0.3mm, DG Pin Connector

Technical Specifications
  • Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
  • Tensile Strength: 580 MPa (Quick Connect Range), 200 MPa (Except Quick Connect Range)
  • Ductile Rating: 6% min (Quick Connect Range), 35% min (Except Quick Connect Range)
  • Final Metal State: Annealed (Quick Connect Range), Fully Annealed (Except Quick Connect Range)
  • Working Temperature: Pre-Insulated -40°C to +105°C, Brass 145°C, Tin plated 160°C
  • Electroplating: Tin, 99.9% Tin Content, 2.5 microns thickness
  • Insulation Material: PVC (except nylon 6 or nylon 66 for FIQC)
  • Breakdown Voltage: 1.5kV minimum
  • Insulation Resistance: Above 100 meg ohms
  • Working Voltage: Up to 300V AC/DC
  • Torque Recommendations: Metric 8.8 tensile grade hardware, torque varies by thread diameter
  • Nominal Pull Out Force varies by wire size from 4.6 kg to 35.2 kg
  • Dimensions (H x L x W): 20mm x 30mm x 10mm
  • Weight: 0.01 kg
Key Features
  • High quality product meeting international standards
  • Funnel entry terminals allow easy conductor entry, minimizing substandard crimps
  • Long term electrical integrity
  • Voltage rating 300V
  • Pre-insulated with PVC insulation
  • Conforms to AS 3169 and AS 4437 standards
  • Should be crimped with the KTC05 tool
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure proper crimping using the KTC05 tool and compliance with electrical standards.
Applications
  • Electrical and power connectivity for fine conductor cable terminations
  • Suitable for use in electrical wiring requiring secure and reliable connections
  • Ideal for industrial, commercial, and residential electrical installations
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste
  • High electrical efficiency reduces energy loss in connections
Warranty Information

Warranty details available upon request; product backed by full technical support and quality assurance.

Available Now

The Cabac Yellow Pin Connector 0.3MM DG is available for immediate purchase, ideal for electrical and power connectivity applications requiring reliable fine conductor terminations.
