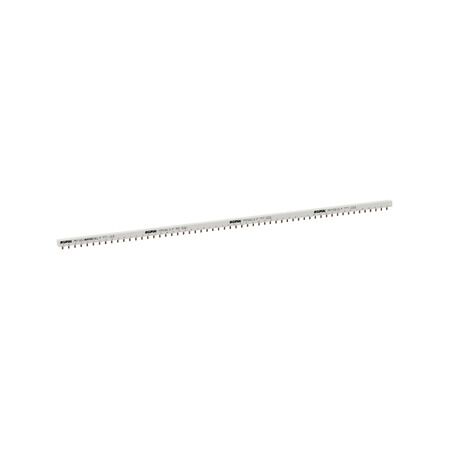

Pin Type Comb Busbar 3P | 100A | 57 Modules | Horizontal Mount by Clipsal
Pin type comb busbar with 100A rated current and 3P configuration—ideal for residential electrical distribution. Built for efficient power management, with horizontal mounting and cuttable design.
Sign in
Please login to continue to your account.
Product Name/Title: MAX9, Pin Type Comb Busbar, 3P, 100 A, 57 Modules
Brand: Clipsal
SKU: MX9B357P
Alternatively Known As: Comb Busbar, Pin Type Busbar, Electrical Busbar
- Rated operational voltage: 230VAC or 415VAC.
- Rated insulation voltage: 500V.
- Rated impulse withstand voltage: 6kV.
- Fire resistance: 960°C.
- Insulation: insulated.
- Dimensions (H x L x W): 35mm x 10mm x 1010mm
- Weight: 0.662 kg
- Rated current of 100A.
- 3P configuration with 57 modules.
- Horizontal mounting mode and cuttable design.
- Includes end-pieces and tooth covers.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes and apartments requiring efficient electrical distribution.
- Complies with AS/NZS 61439-3 and AS/NZS 3000.
- Compliant with EU RoHS directive and free from toxic heavy metals.
7 years warranty against manufacturing defects.
The Clipsal MAX9 Pin Type Comb Busbar is available now for immediate purchase. Ideal for residential electrical distribution.
