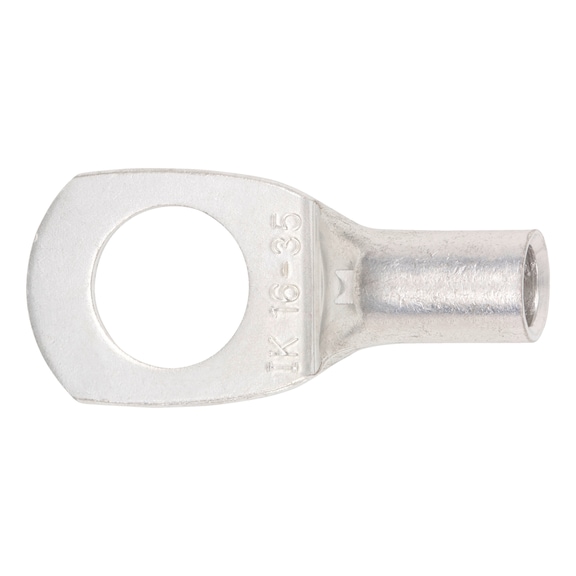

Pipe Cable Lug with Inspection Hole | Tin Plated Copper | 35 mm² Wire | Max 125°C | @Pack of 10 | by Wurth
Pipe cable lug with inspection hole is designed for secure electrical connections, featuring a 35 mm² wire capacity and a maximum temperature resistance of 125°C. Made from tin-plated electrolytic copper, it ensures excellent conductivity and corrosion resistance, making it ideal for both industrial and residential wiring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pipe Cable Lug with Inspection Hole | Tin Plated Copper | 35 mm² Wire | Max 125°C | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 96723516
Alternatively Known As: Cable lug with inspection hole, Copper cable lug, Electrical cable connector, Wire terminal lug
Technical Specifications
- Wire cross section: 35 mm²
- Flange hole: M16
- Wire diameter (d1): 8.5 mm
- Diameter of hole (d2): 17.0 mm
- Distance between sleeve end and centre of hole (e): 42.0 mm
- Sleeve length (a): 17.0 mm
- Width (b): 26.0 mm
- Max. temperature resistance: 125 °C
- Material: Electrolytic copper
- Surface: Tin plated
- Dimensions (H x L x W): 17mm x 59mm x 26mm
- Weight: 0.05 kg
Key Features
- Inspection hole allows for easy verification of cable insertion
- Tin plated electrolytic copper material ensures excellent conductivity and corrosion resistance
- Suitable for wire cross section of 35 mm²
- Max temperature resistance of 125 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper cable connection and safety compliance.
Applications
- Electrical wiring and cable termination in industrial and residential installations
- Suitable for use in electrical panels and machinery requiring secure cable connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Tin plating enhances corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Pipe Cable Lug with Inspection Hole 10 PCS is available for immediate purchase, ideal for electrical wiring and cable termination applications.
